| GB-1306E | GB-3512E | GB-4016E | GB-6025E | |
|---|---|---|---|---|
| Nominal Pressure | 130KN | 350KN | 400KN | 600KN |
| Bending Length | 670mm / 2.2ft | 1200mm / 4ft | 1600mm / 5ft | 2000mm / 78.7ft |
| Distance Between Columns | 620mm / 24.4in | 930mm / 36.6in | 1265mm / 49.8in | 1660mm / 63.4in |
| Max. Ram Open Height | 330mm / 13in | 400mm / 15.7in | 400mm / 15.7in | 400mm / 15.7in |
| Ram Stroke | 160mm / 6.3in | 180mm / 7.1in | 180mm / 7.1in | 180mm / 7.1in |
| Throat Depth | 210mm / 8.3in | 320mm / 12.6in | 320mm / 12.6in | 320mm / 12.6in |
| Dimension |
1050*1265*2060mm 3.4*4.2*6.8ft |
1950*1675*2200mm 6.4*5.5*7.3ft |
2350*1700*2220mm 7.7*5.6*7.3ft |
2730*1820*2330mm 9*6*7.6ft |
| Machine Weight | 1100kg / 2425lbs | 2500kg / 5511.6lbs | 3500kg / 7716.2lbs | 5500kg / 12125.5lbs |
| GB-1306E | GB-3512E | GB-4016E | GB-6025E | |
|---|---|---|---|---|

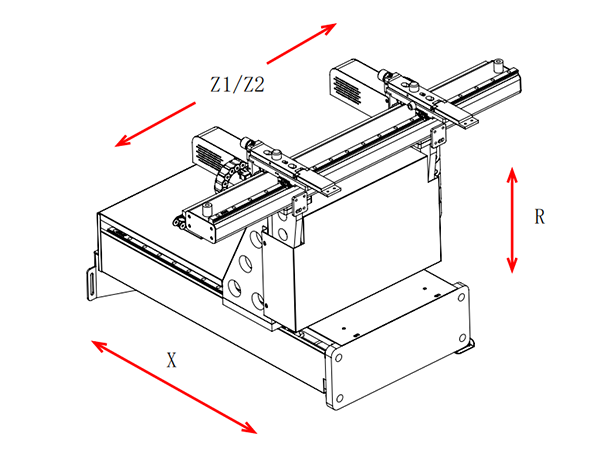

| X-axis Travel | 450mm / 17.7in | 450mm / 17.7in | 400mm / 15.7in | 600mm / 23.6in |
| X-axis Speed | 400mm/s / 15.7in/s | 400mm/s / 15.7in/s | 400mm/s / 15.7in/s | 400mm/s / 15.7in/s |
| R-axis Travel | 120mm / 4.7in | 120mm / 4.7in | 120mm / 4.7in | 180mm / 7.1in |
| R-axis Speed | 200mm/s / 7.9in/s | 200mm/s / 7.9in/s | 200mm/s / 7.9in/s | 200mm/s / 7.9in/s |
| Z-axis Travel | - | 600mm / 23.6in | 1000mm / 39.4in | 1400mm / 55.1in |
| Z-axis Speed | - | 400mm/s / 15.7in/s | 400mm/s / 15.7in/s | 400mm/s / 15.7in/s |
| Fast Down Ram Speed | 200mm/s / 7.9in/s | 200mm/s / 7.9in/s | 200mm/s / 7.9in/s | 150mm/s / 5.9in/s |
| Working Speed | 50mm/s / 2in/s | 50mm/s / 2in/s | 50mm/s / 2in/s | 50mm/s / 2in/s |
| Return Speed | 200mm/s / 7.9in/s | 200mm/s / 7.9in/s | 200mm/s / 7.9in/s | 150mm/s / 5.9in/s |
Material Applications:
Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Galvanized Steel, Copper, Brass, and other sheet metal materials.
Industry Applications:
Sheet Metal Fabrication, Electrical Cabinets & Enclosures, Automotive Parts, HVAC, Kitchen Equipment, Steel Furniture, Machinery Manufacturing, Construction Equipment, and more.
