Fully Automatic High-Speed Press Brake | GB- A SERIES


  • Fully automated bending with high-precision components ensures exceptional accuracy and reliability.
  • Greatly improves productivity while reducing labor and production costs.
  • Handles complex shapes like arcs, hems, and closed profiles with ease.

Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

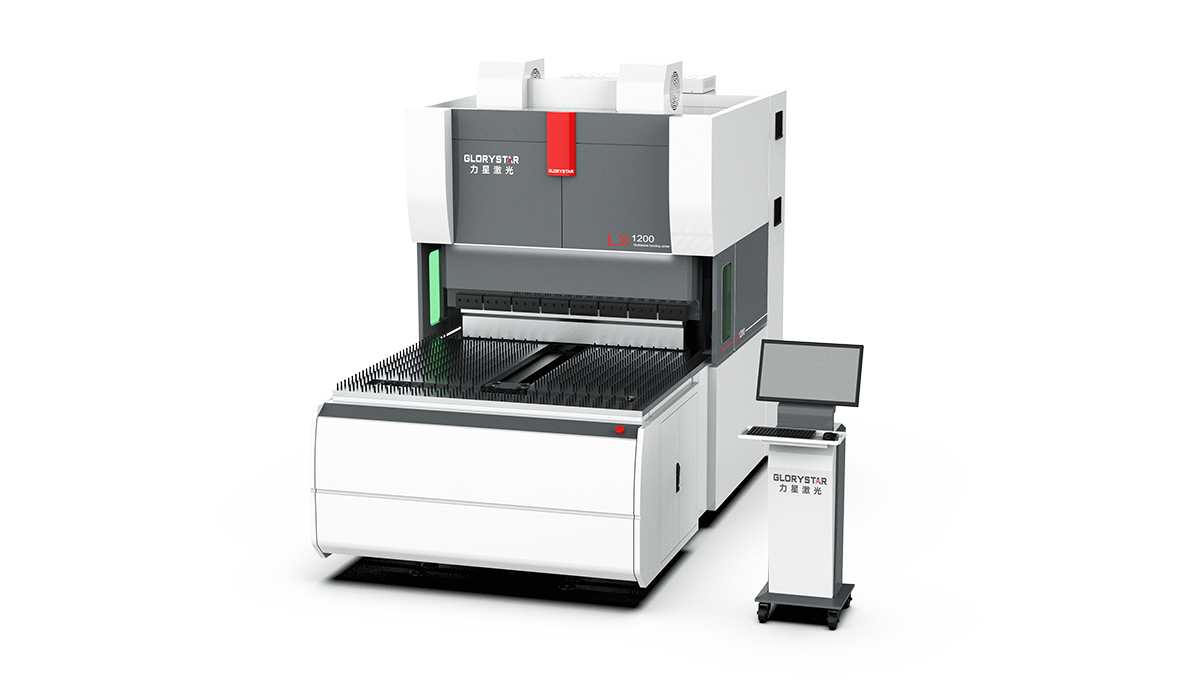

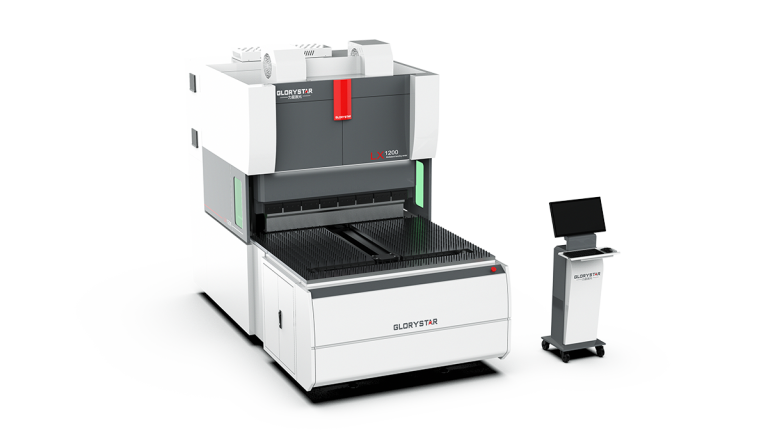

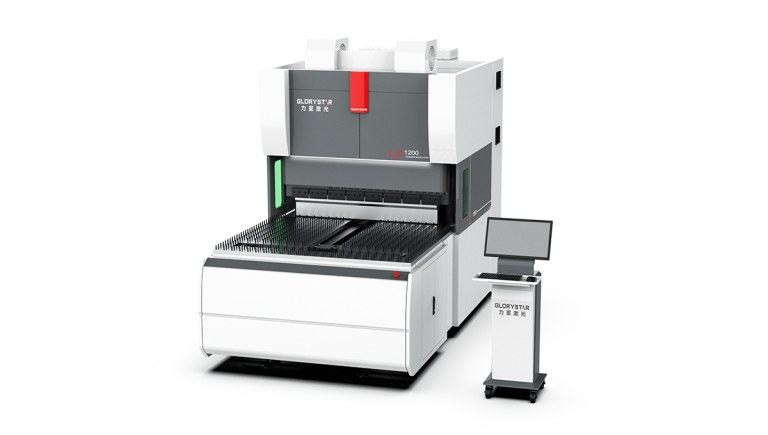

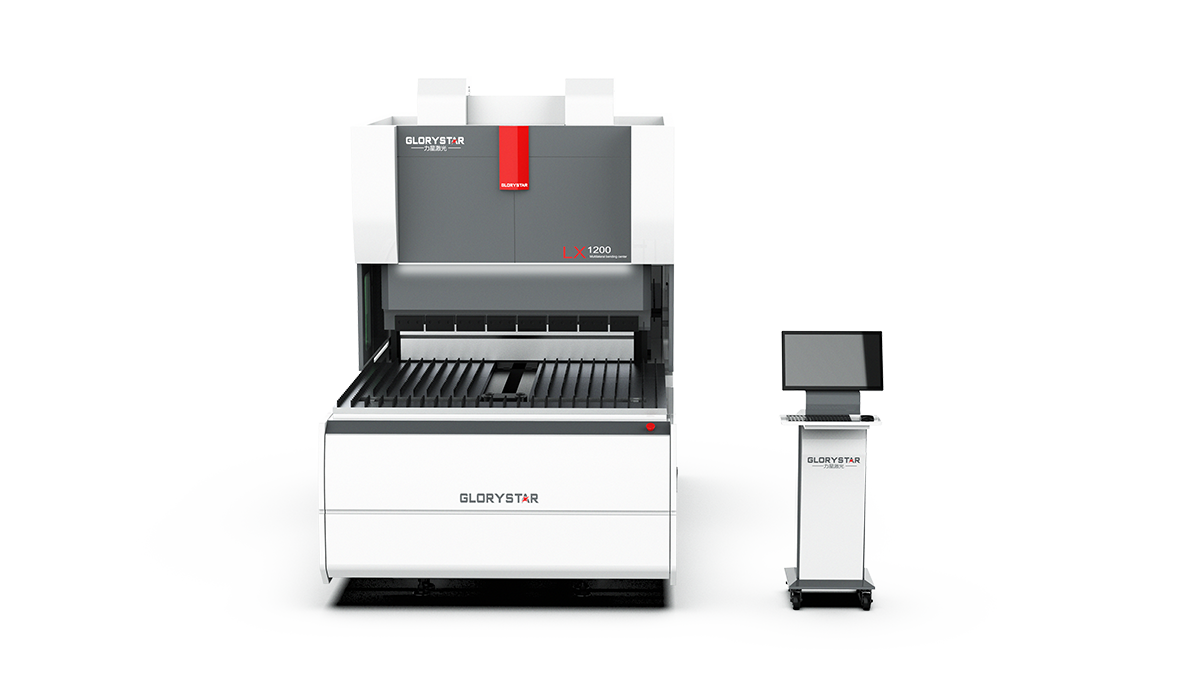

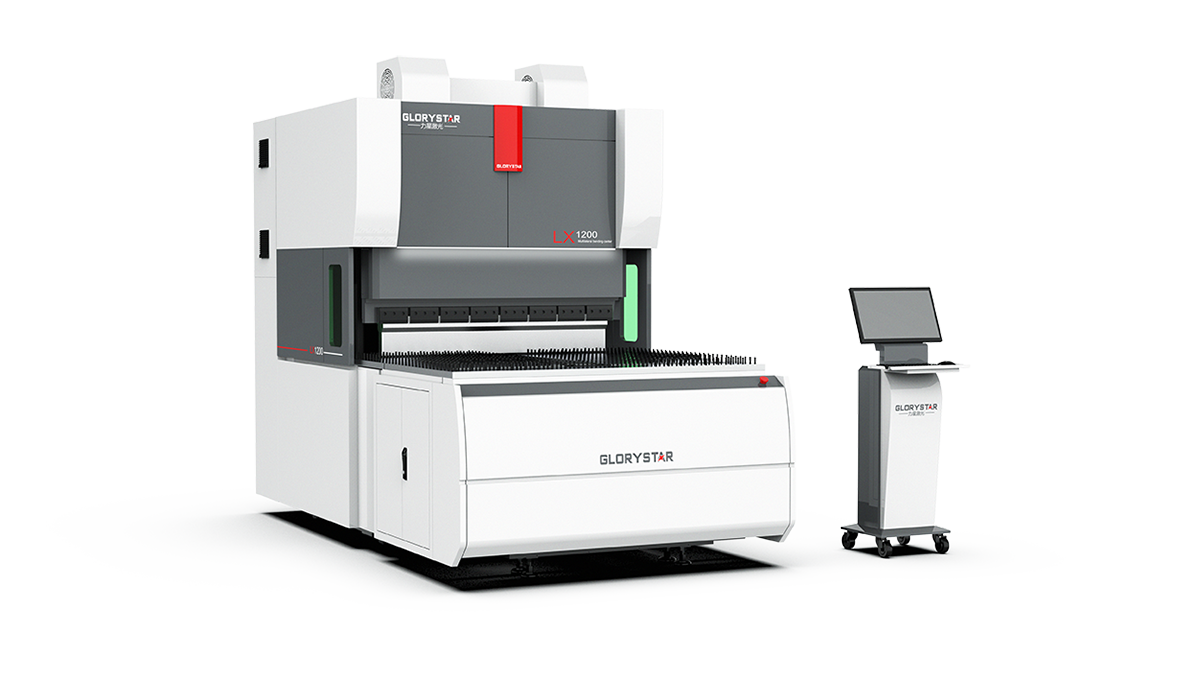

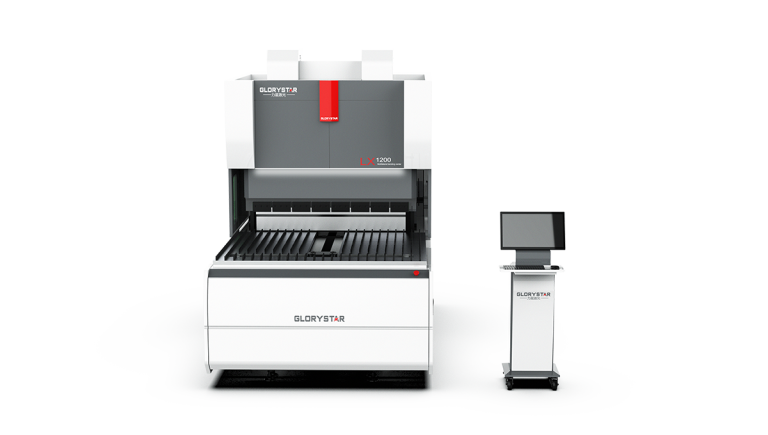

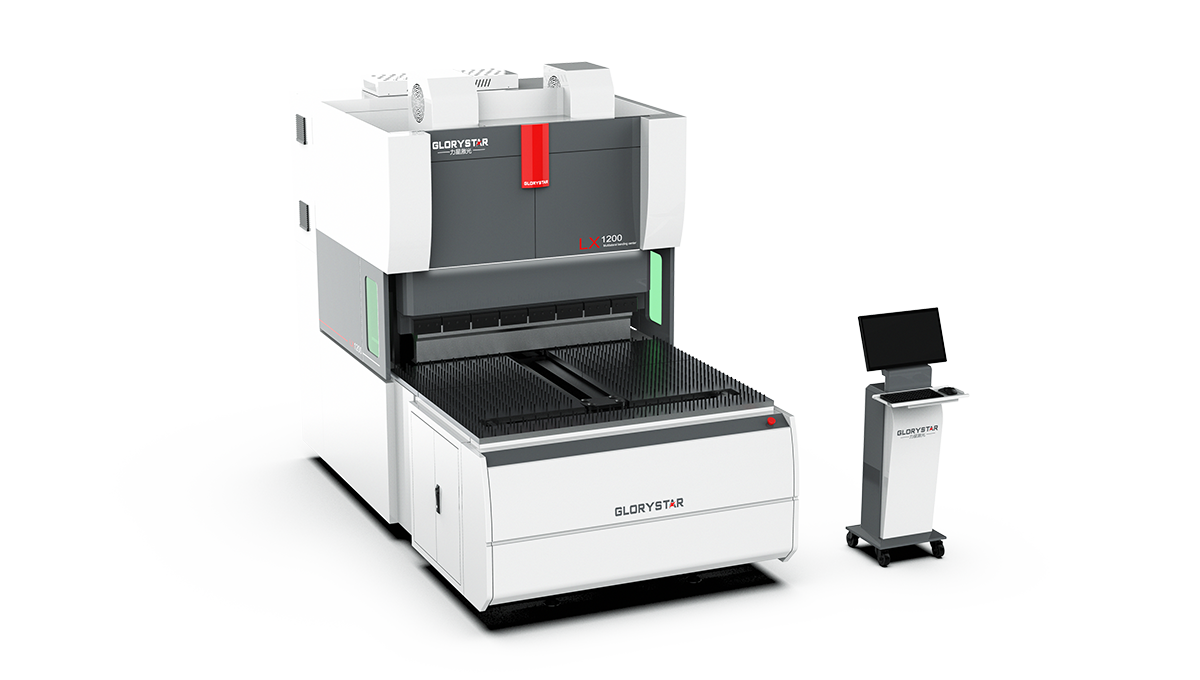

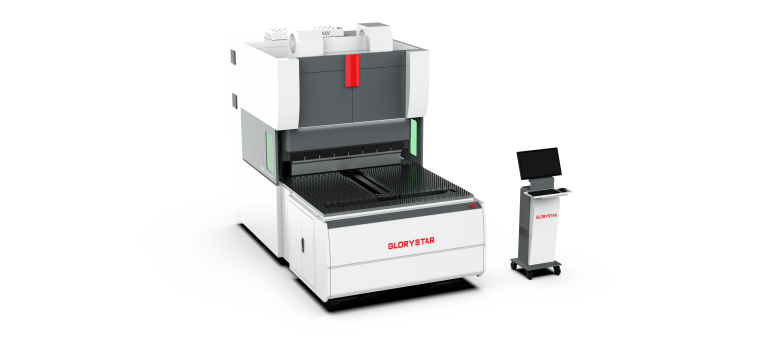

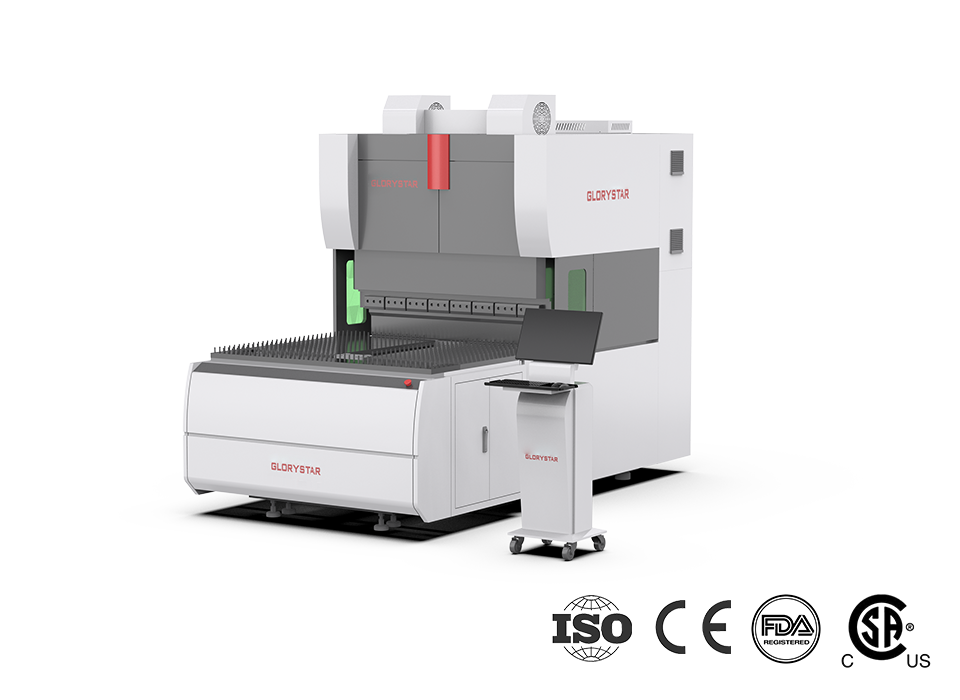

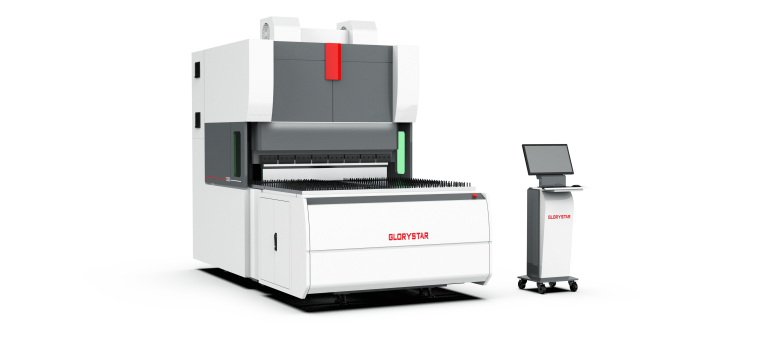

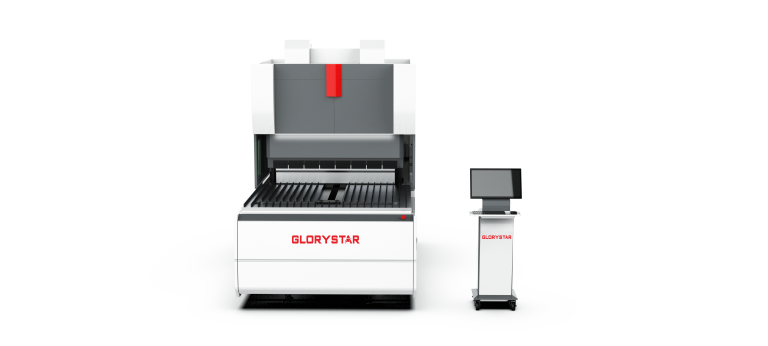

GB-A Series Fully Automatic Bending Center

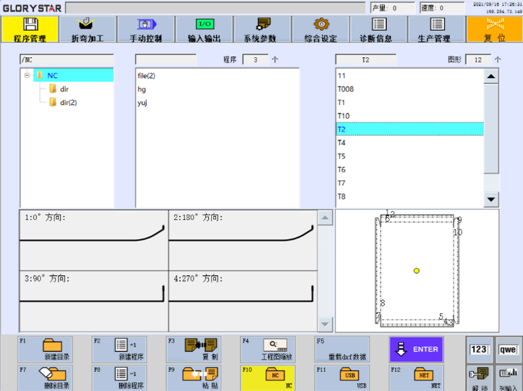

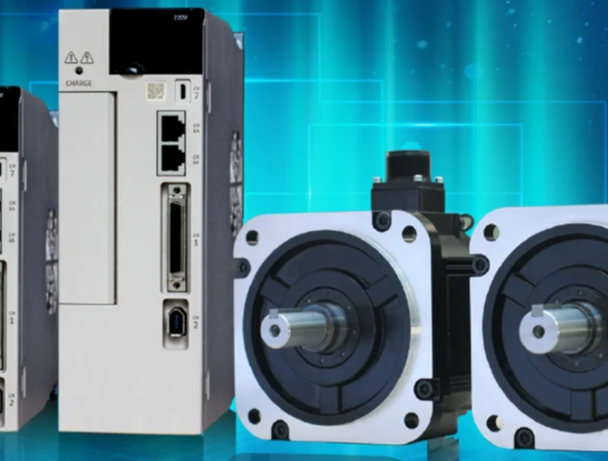

The GB-A Series Fully Automatic High-Speed Bending Center is a high-precision, high-efficiency sheet metal bending solution featuring an advanced and well-engineered structure. It incorporates a self-developed control system specifically designed for bending centers, high-precision gear reducers, ball screws, linear guide rails, and high-performance servo motors to enable fully automated bending operations.

Efficient Bending System for Complex Shapes

This system handles complex tasks like arcs, closed shapes, U-forms, and hemmed edges, boosting efficiency, lowering labor costs, and reducing manufacturing expenses for high-demand sheet metal applications.

Why Choose GLORYSTAR?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Specifications

  • Technical Parameter
  • Dimensions & Weight
  • Application
Model GB-1200A GB-1500A GB-2000A GB-2500A
Bending Length 1200mm / 4ft 1500mm / 5ft 2000mm / 7ft 2500mm / 8ft
Bending Height 4 sides 170mm
6.69in		 4 sides 170mm / 6.7in
2 sides 170mm (6.7in) / 2 sides 350mm (13.8in)
4 sides 350mm / 13.8in
Max. Bending Size 1200*1200mm
4*4ft		 1500*1500mm
5*5ft		 2000*1500mm
7*5ft		 2500*1500mm
8*5ft
Max. Bending Thickness 2mm / 0.08in 3mm / 0.12in 3mm / 0.12in 3mm / 0.12in
Max. thickness of iron plate 1.5mm / 0.06in 2mm / 0.08in 2mm / 0.08in 2mm / 0.08in
Max. thickness of stainless steel 0.8mm / 0.03in 1.5mm / 0.06in 1.5mm / 0.06in 1.5mm / 0.06in
Maximum Bending Speed 0.2s/per bend 0.2s/per bend 0.2s/per bend 0.2s/per bend
Configuration GB-1200A GB-1500A GB-2000A GB-2500A
Dimensions 4 sides 170 1590*2950*2666mm
5*10*9ft		 1890*3300*2666mm
6*11*9ft		 2390*3900*2800mm
8*13*9ft		 2890*4500*2800mm
9*15*9ft
2-4 sides
350 Vacuum Cup		 / 1890*3536*2946mm
6*12*10ft		 2360*4110*2936mm
8*13*10ft		 2900*4460*2936mm
10*15*10ft
2-4 sides
350 Press Arm		 / 1890*4127*2946mm
6*14*10ft		 2360*4500*2946mm
8*15*10ft		 2880*4950*3090mm
9*16*10ft
Weight 4 sides 170 8000kg
17637lbs		 10000kg
22046.3lbs		 14000kg
30864.8lbs		 17000kg
37478.6lbs
2-4 sides
350 Vacuum Cup		 / 10000kg
22046.3lbs		 14000kg
30864.8lbs		 17000kg
37478.6lbs
2-4 sides
350 Press Arm		 / 10000kg
22046.3lbs		 14000kg
30864.8lbs		 17000kg
37478.6lbs

Material Applications:

Carbon Steel, Stainless Steel, Aluminum, Galvanized Steel, Copper, Brass, and other sheet metal materials suitable for bending.

Industry Applications:

Sheet Metal Fabrication, Electrical Cabinets & Enclosures, Kitchen Equipment, Steel Furniture, HVAC, Automotive Parts, Elevator Manufacturing, Machinery Manufacturing, Construction Equipment, and more.
