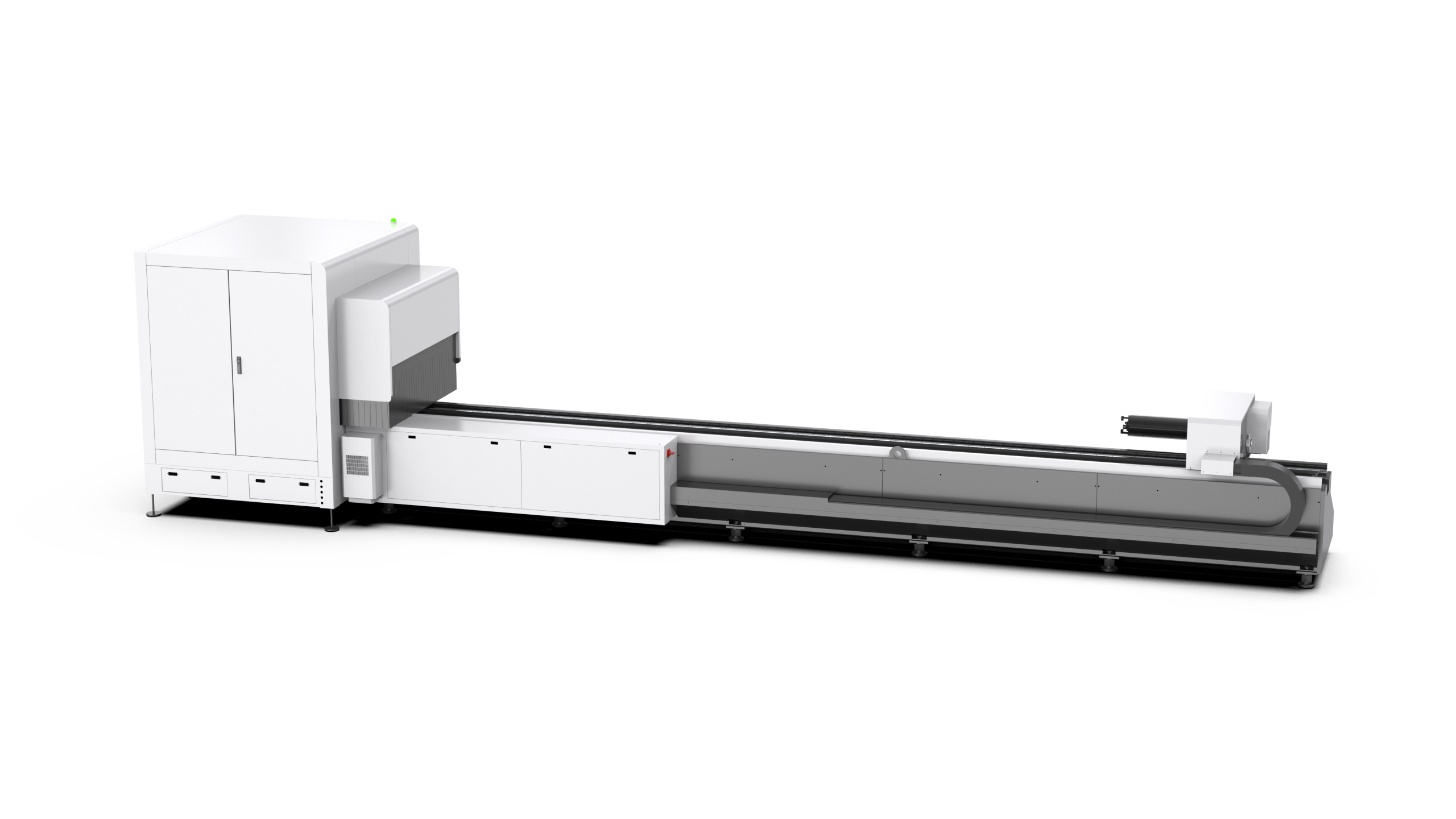

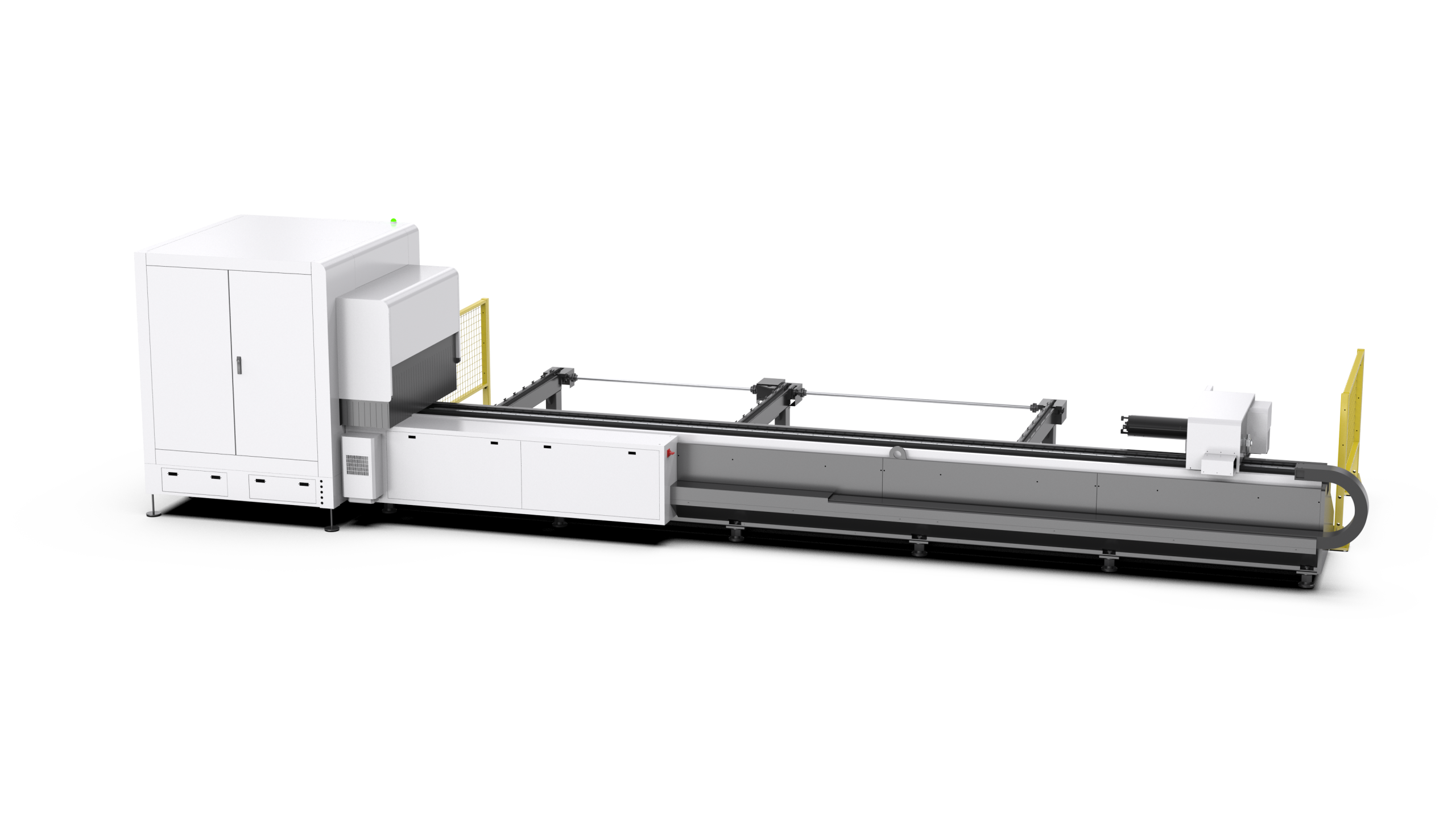

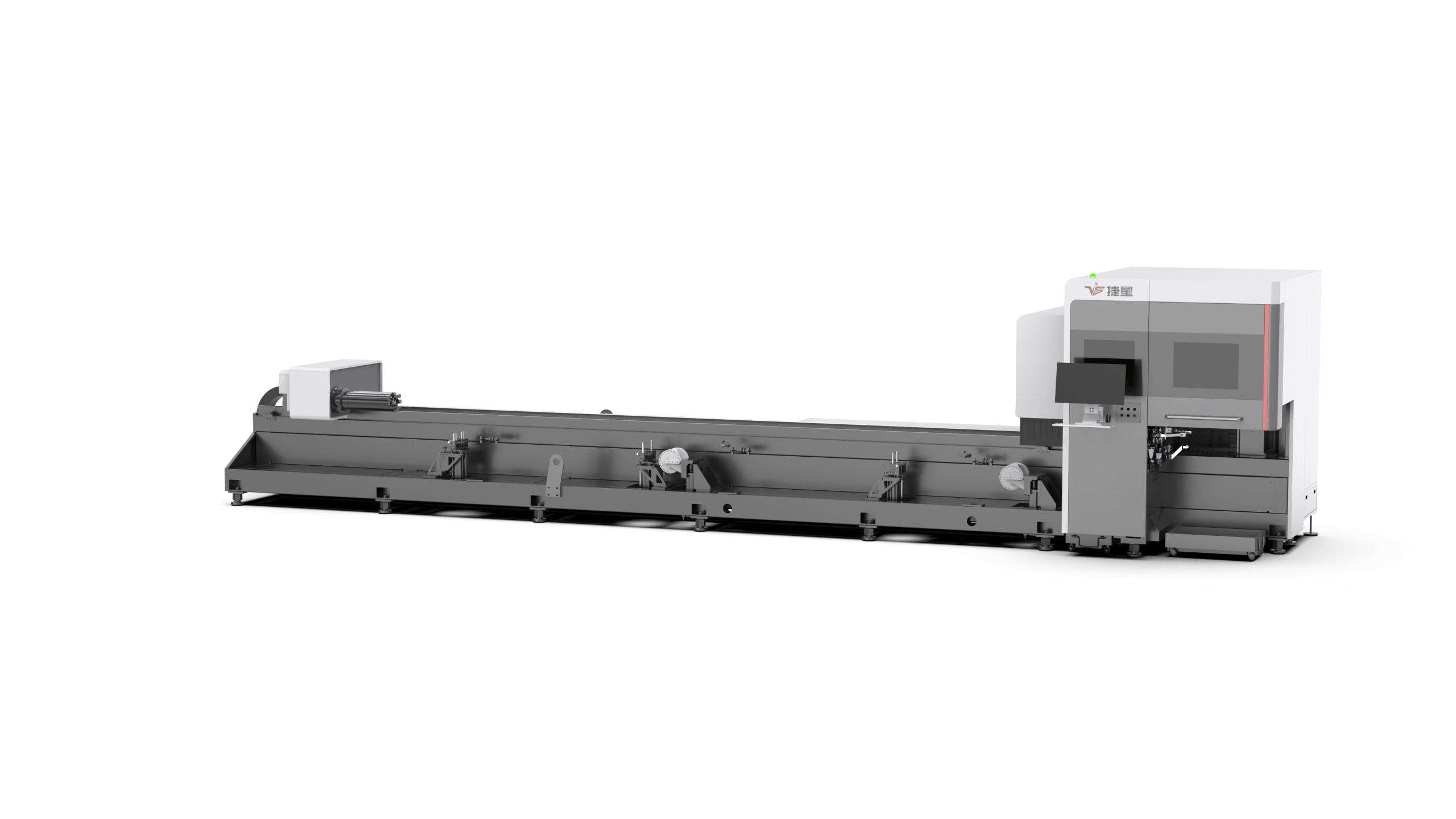

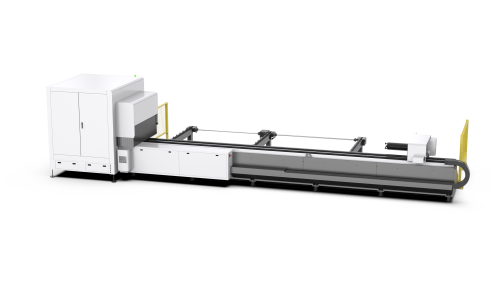

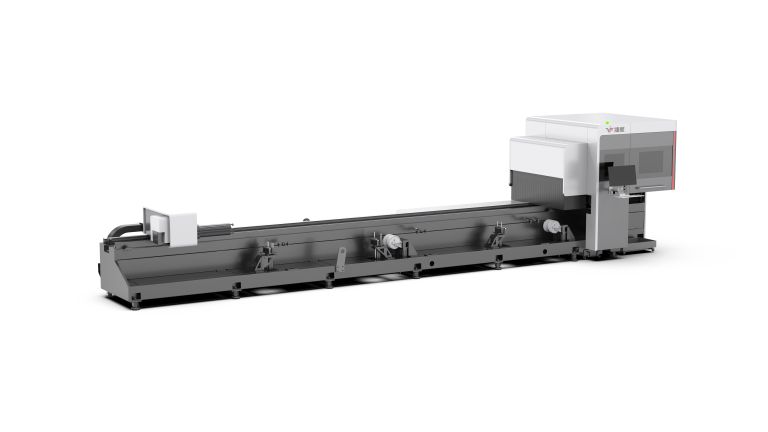

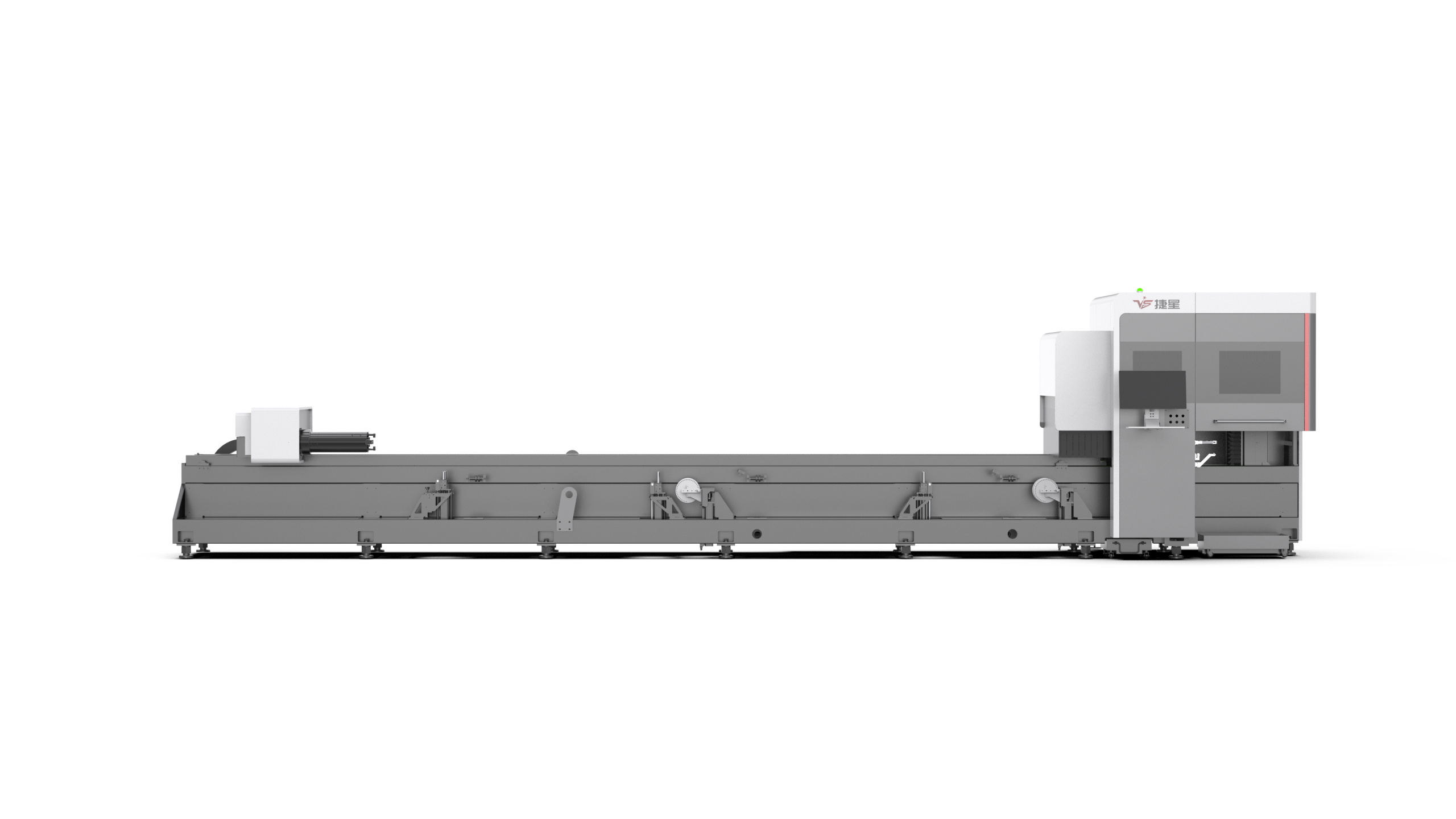

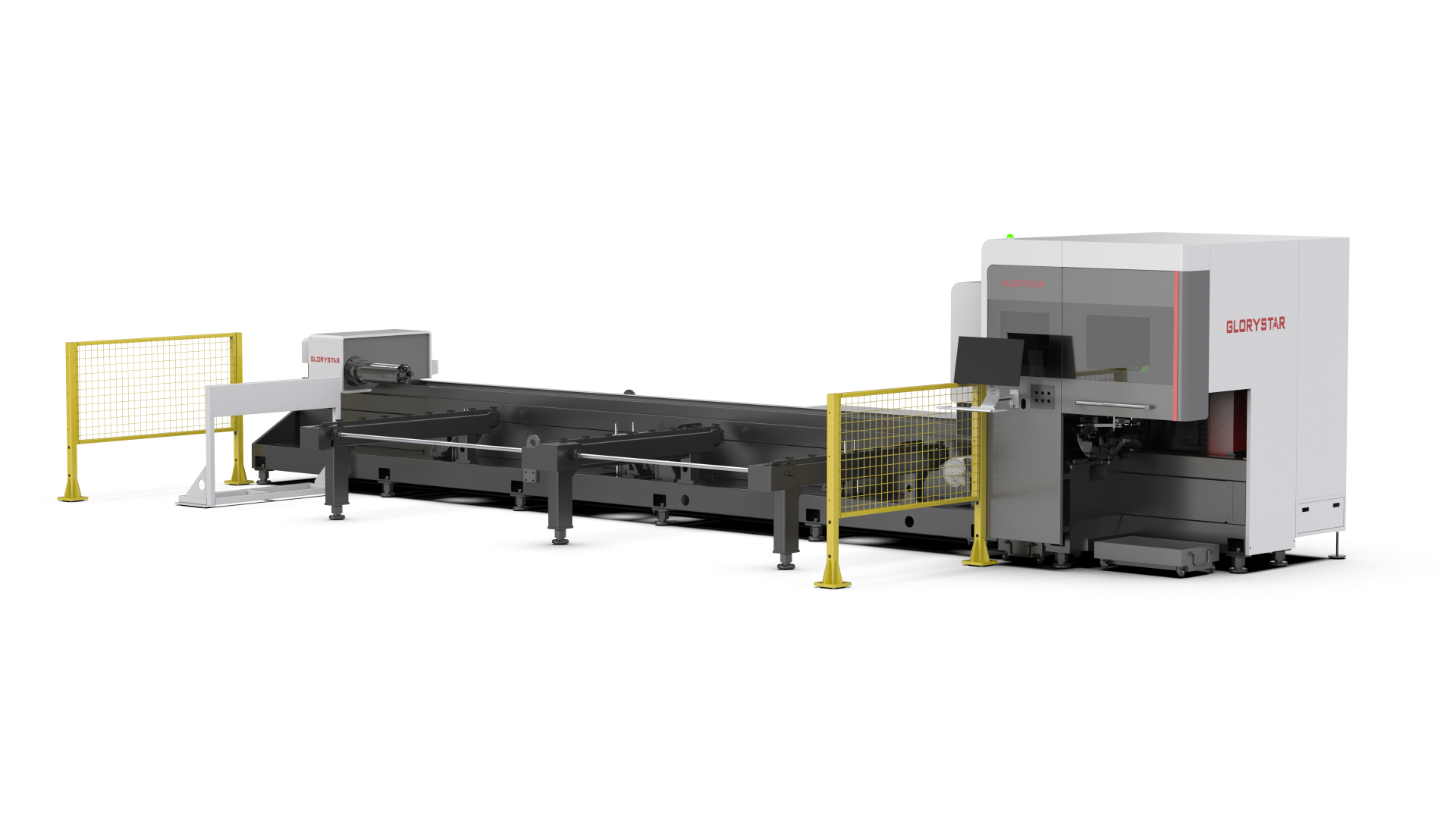

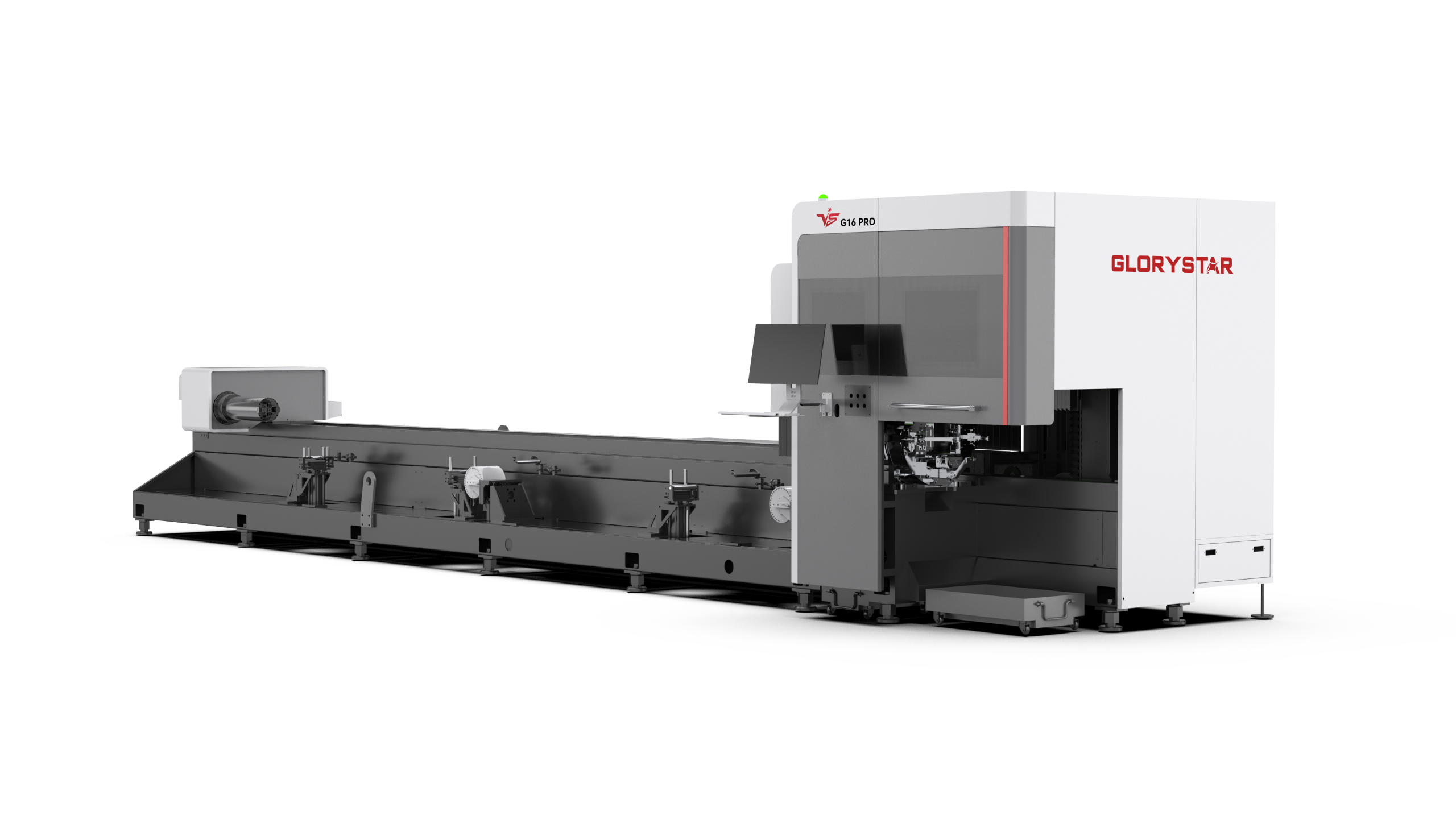

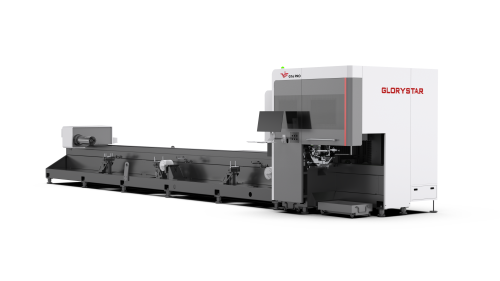

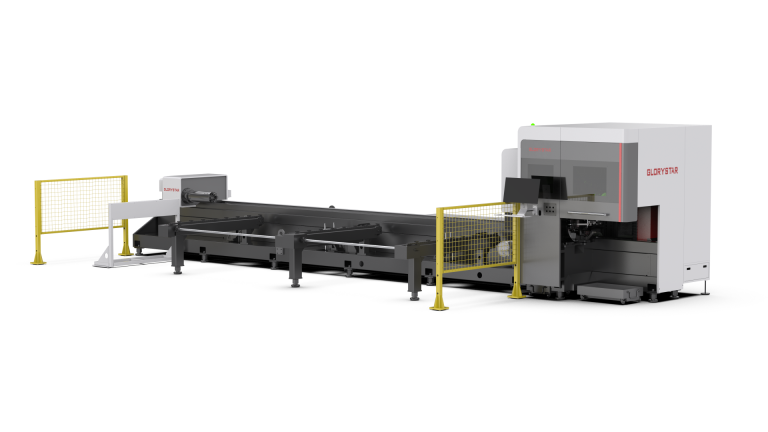

High-Speed Bevel Laser Cutter for Small-Diameter Tubes | G-PRO SERIES

【High Speed】【High Precision】【High Stability】

  • Accurate to ±0.1mm, supports small tubes down to 10mm.
  • Minimizes material waste with 80/160mm short-tail capability.
  • 1.2G acceleration and 130r/min chuck speed boost productivity.
  • Advanced dustproof and extraction system reduces emissions by 80%.
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

No Deformation & Minimal Waste

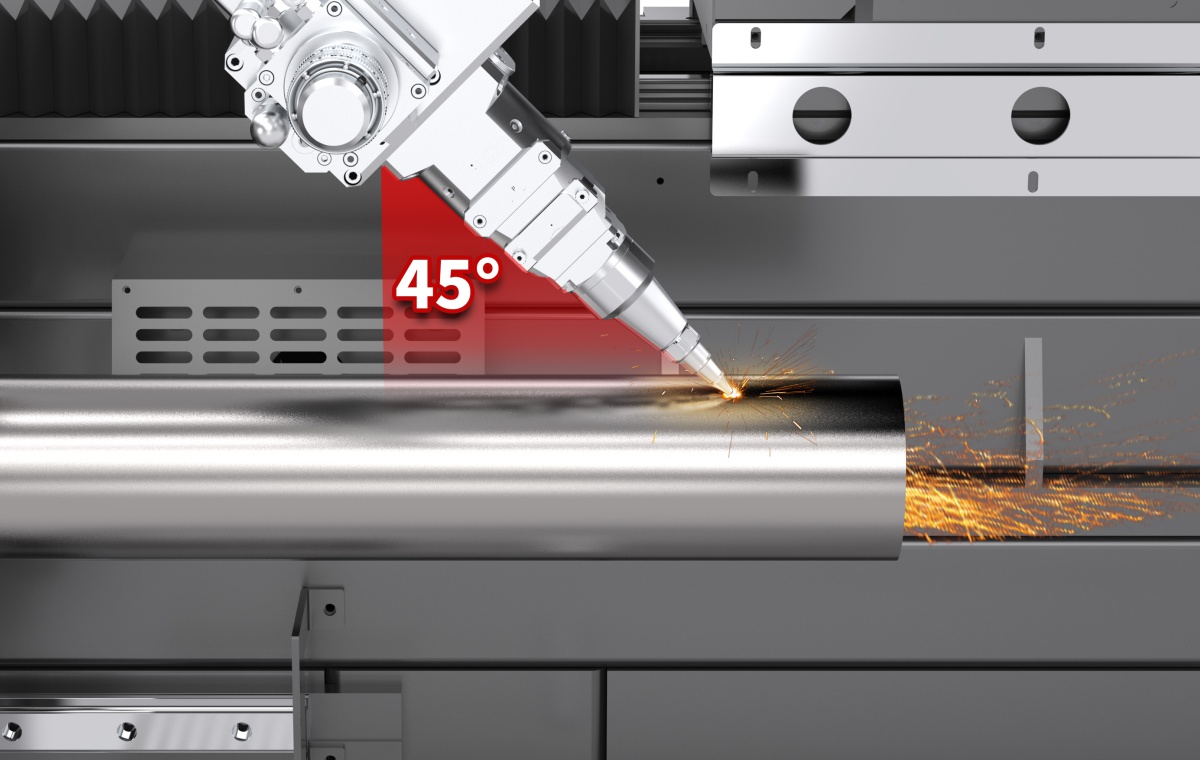

The G PRO Series, a newly upgraded small-tube bevel cutting machine from Glorystar Laser, combines ultra-high precision with exceptional efficiency. Featuring a zero overhang structure and patented chuck design, it effectively prevents pipe deformation and enables high-precision bevel cutting for tubes as small as 10mm in diameter, ensuring seamless splicing for high-standard welding requirements. With advanced short-tail cutting technology, the cutting head supports overrun operation, reducing tail material to as little as 80/160mm and significantly improving material utilization—an ideal solution for cutting costs.

Multi-Material

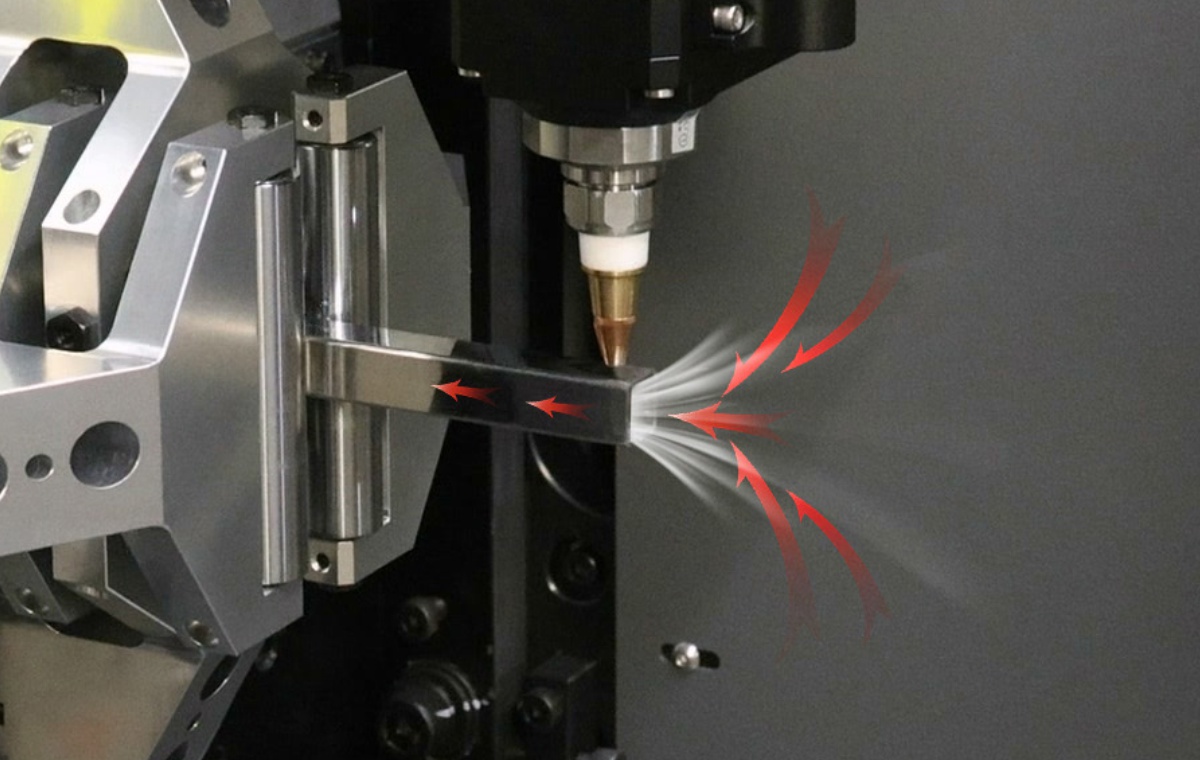

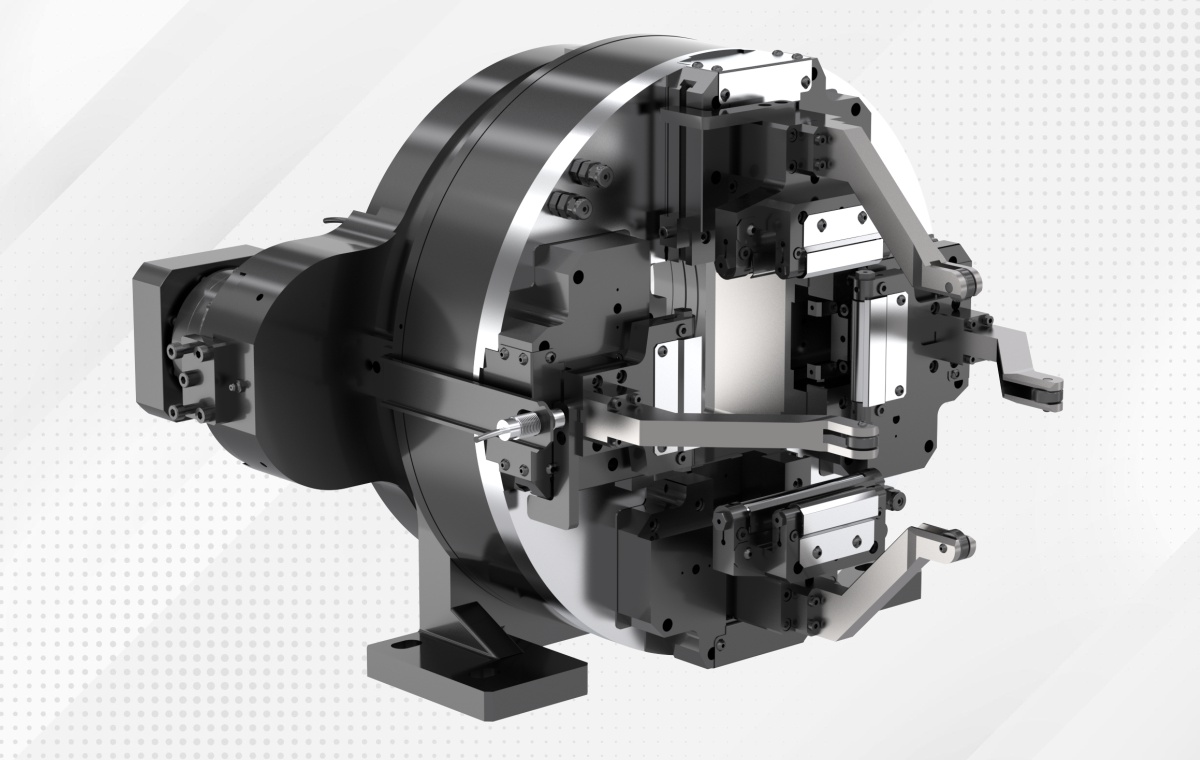

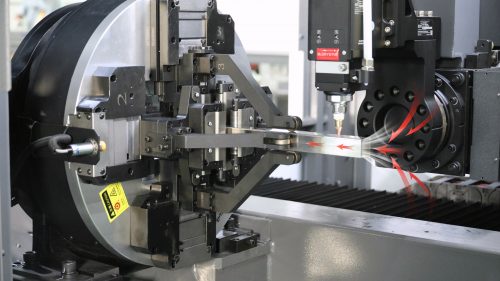

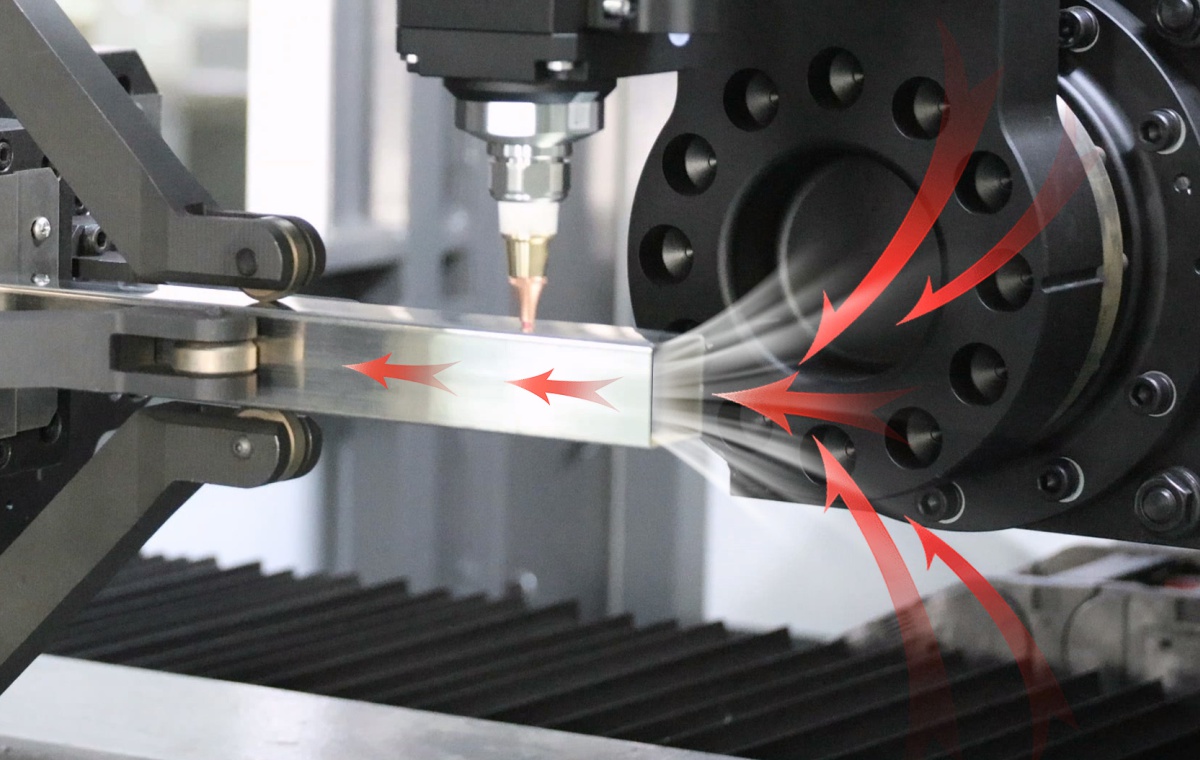

Equipped with an industry-leading Y-axis dustproof system and multi-stage dust collection features, the G Series reduces dust emissions by up to 80%, creating a cleaner, greener smart workshop. Its high-precision chuck offers clamping accuracy within ±0.05mm and supports cutting of round and square tubes from 10–160mm, as well as angle steel, channel steel, I-beams, and more. With 1.2G acceleration and a chuck speed of 130r/min, it delivers outstanding efficiency—making it a top performer in small-tube laser cutting.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Specifications

  • Technical Parameter
  • Cutting Capacity
  • Application
Model G12 PRO G16 PRO
Pipe Size 6500mm / 21.3ft   7500mm / 24ft 6500mm / 21.3ft   7500mm / 24ft
Max. Acceleration 1.5G 1.2G
Repeat Positioning Accuracy ≤0.03mm / ≤0.0012in ≤0.03mm / ≤0.0012in
Positioning Accuracy ≤0.05mm / ≤0.002in ≤0.05mm / ≤0.002in
Pipe Weight ≤120Kg / ≤265lbs ≤160Kg / ≤353lbs
Model G12 PRO G16 PRO
Round Pipe Processing Range Φ10mm–Φ120mm / Φ0.4in–Φ4.7in Φ10mm–Φ160mm / Φ0.4in–Φ6.3in
Square Pipe Processing Range 10×10mm–120×120mm / 0.4×0.4in–4.7×4.7in 10×10mm–160×160mm / 0.4×0.4in–6.3×6.3in

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Galvanized Steel, Alloy Steel, and more.

Industry Applications:

Metal Fabrication, Automotive, Furniture Manufacturing, Fitness Equipment, Construction, Machinery Manufacturing, Agricultural Machinery, HVAC, Steel Structures, and other tube processing industries.


FAQs

  • All FAQs
  • General
  • Technology
  • Sales
What technical support do you offer?

We back every Glorystar Laser system with end‑to‑end support: pre‑sales application consulting and sample cutting, turnkey on‑site installation and operator training, 24/7 remote diagnostics, rapid-response field service from certified engineers, a global spare‑parts network, lifetime software updates, and optional process optimization and automation upgrades—everything you need to keep your laser running at peak productivity.

How is the machine installed?

Our certified engineers handle positioning, leveling, utility hookup (power, gas, cooling), full system wiring, laser alignment, accuracy calibration, and trial cutting. A signed acceptance report closes the job.
