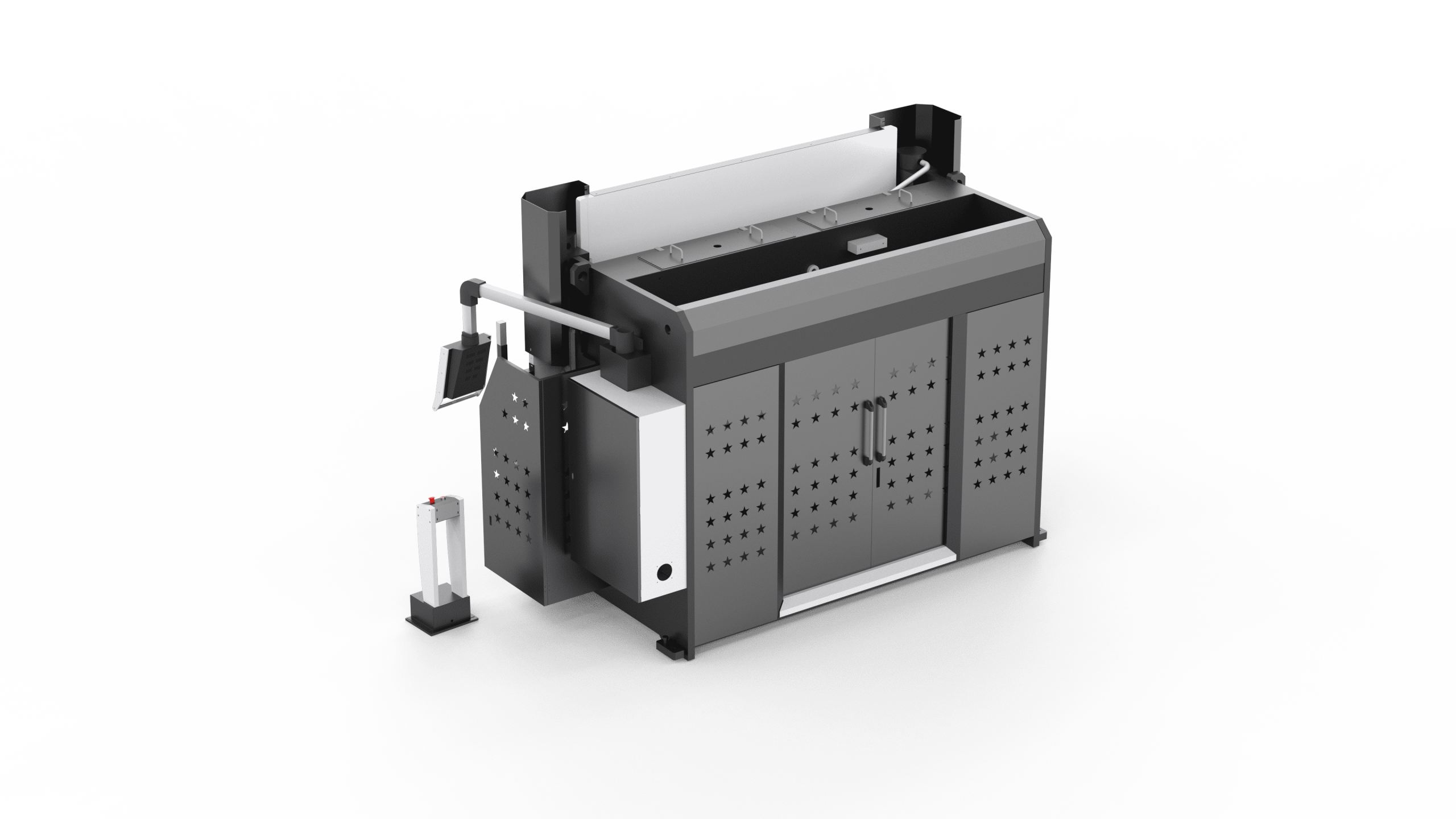

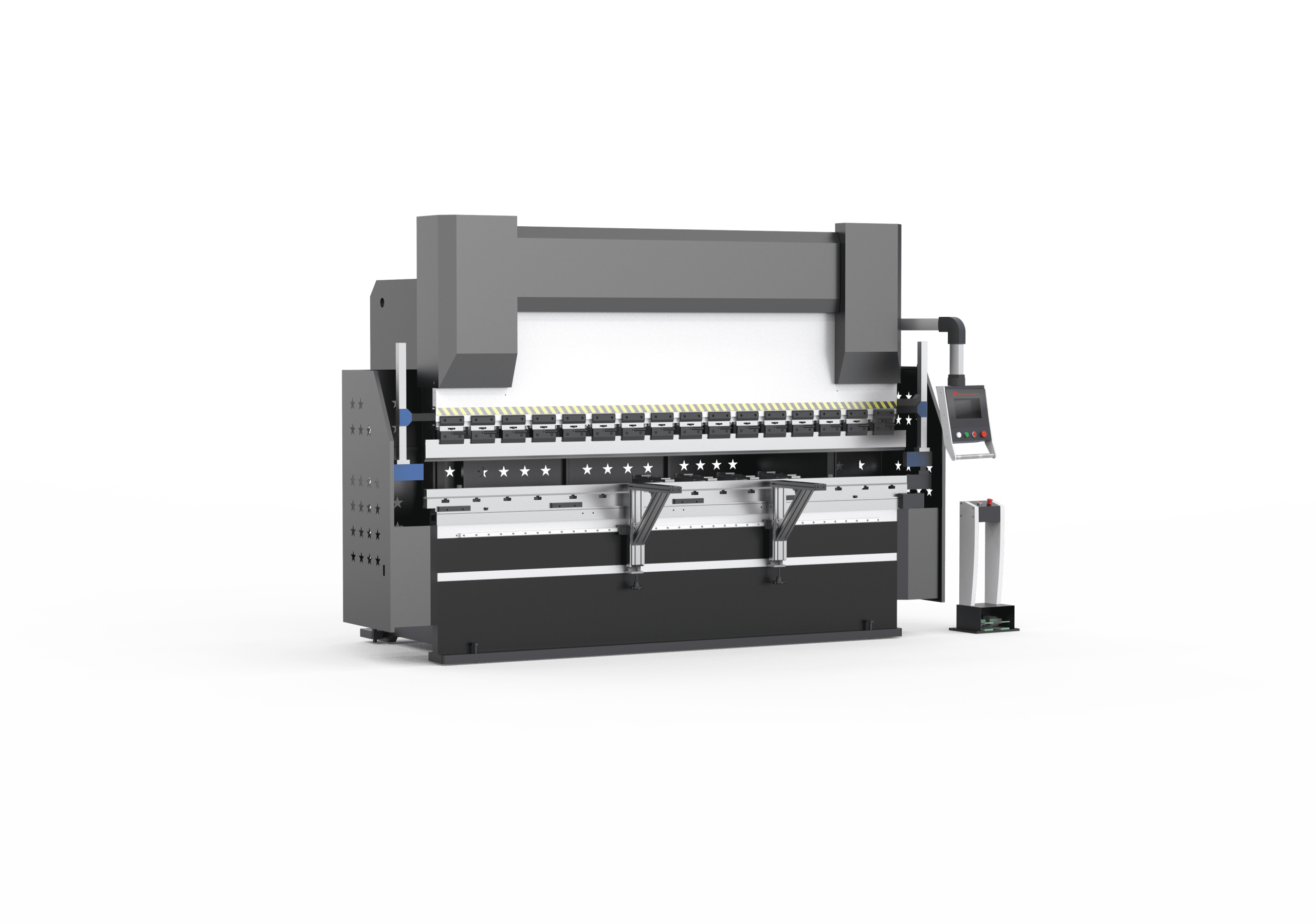

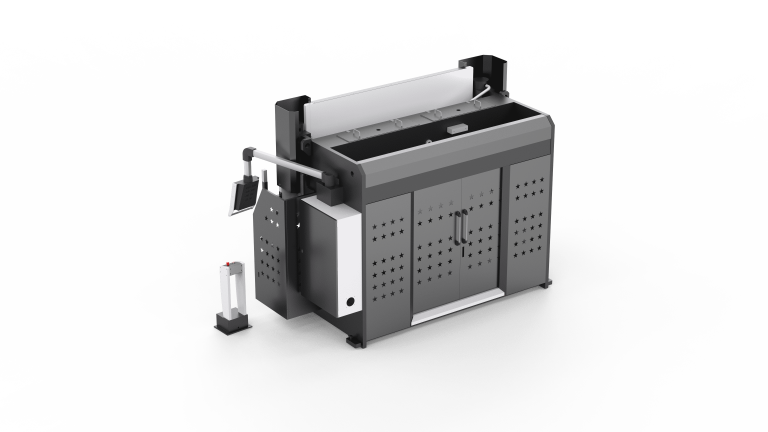

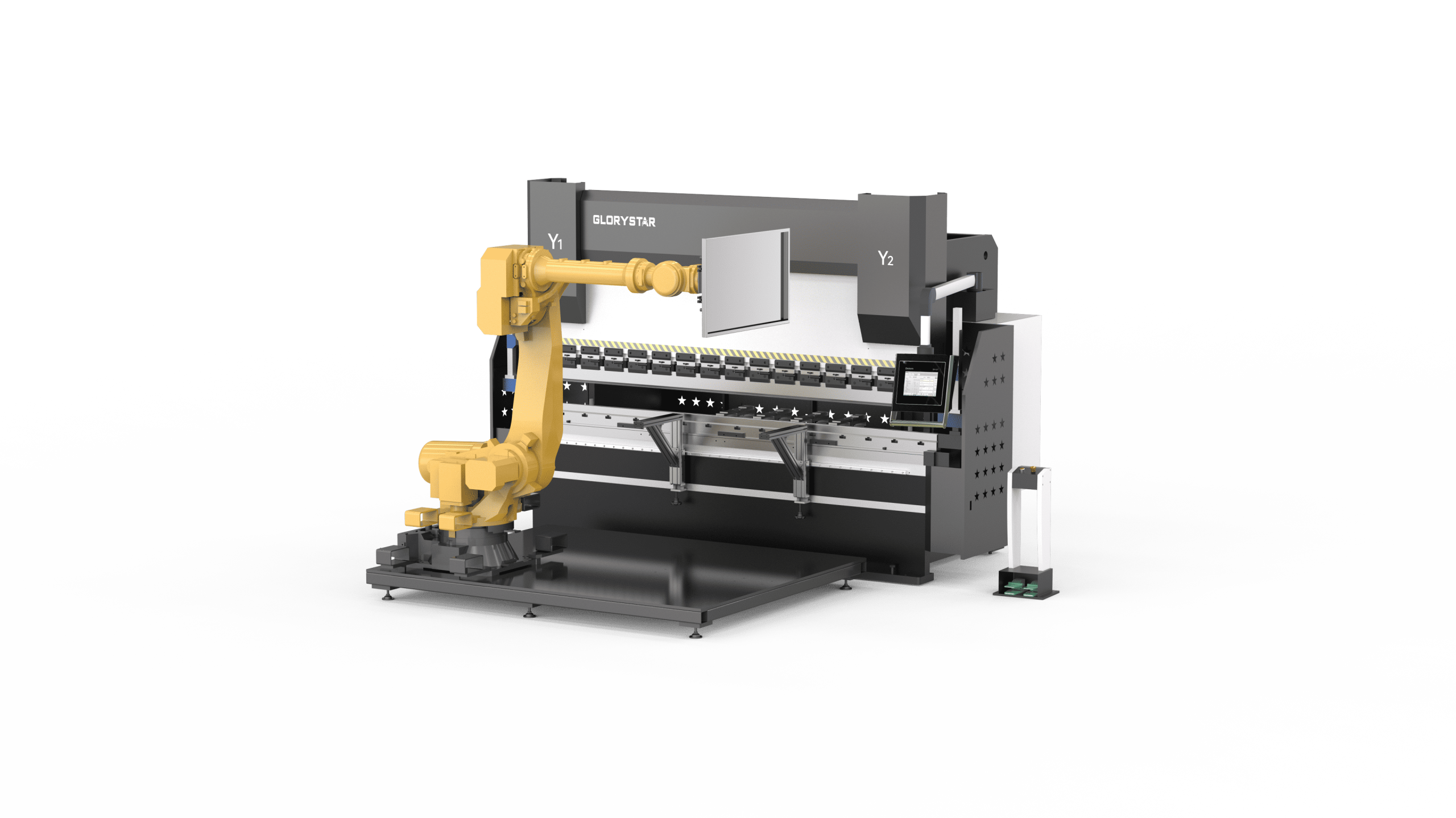

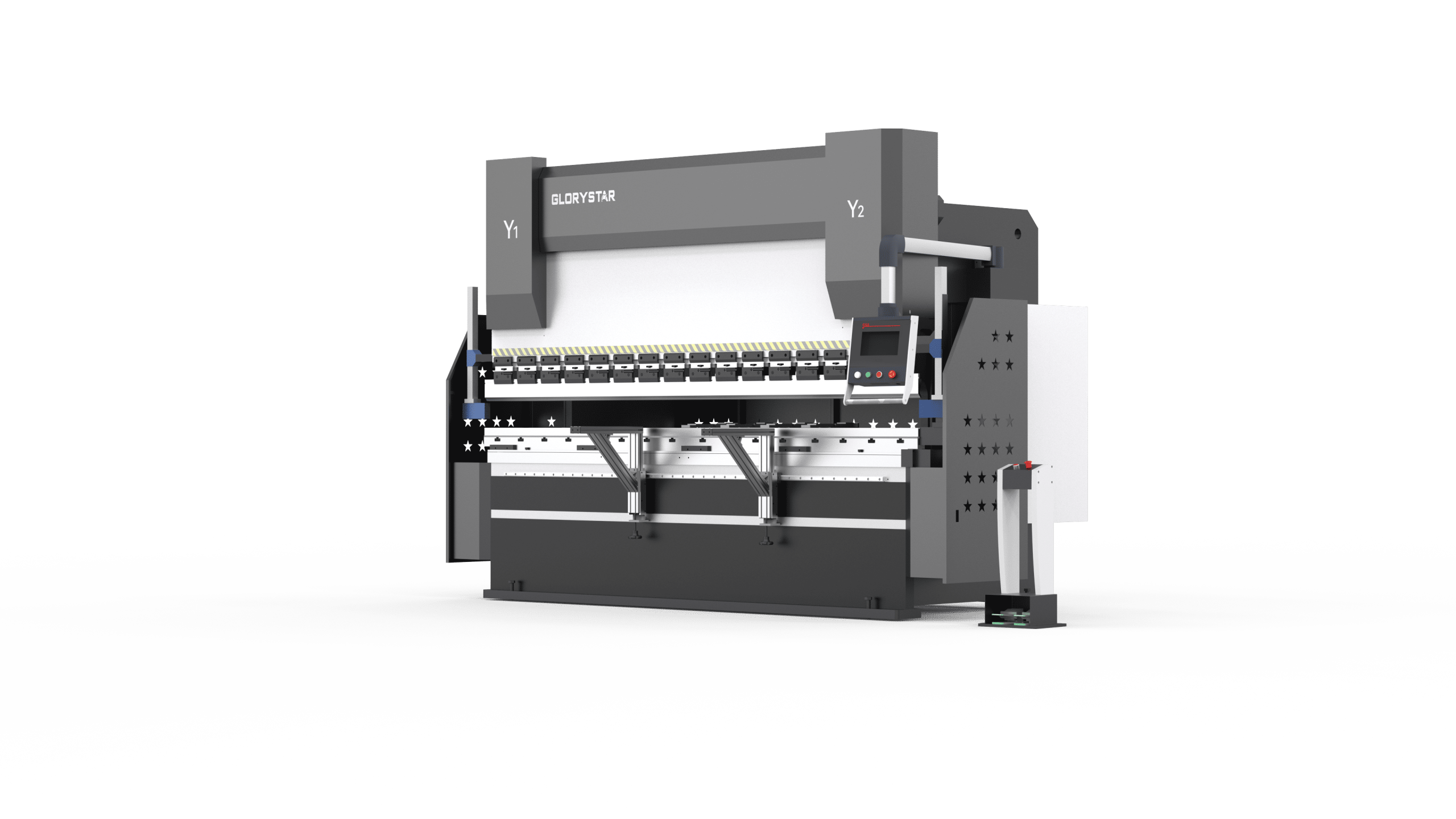

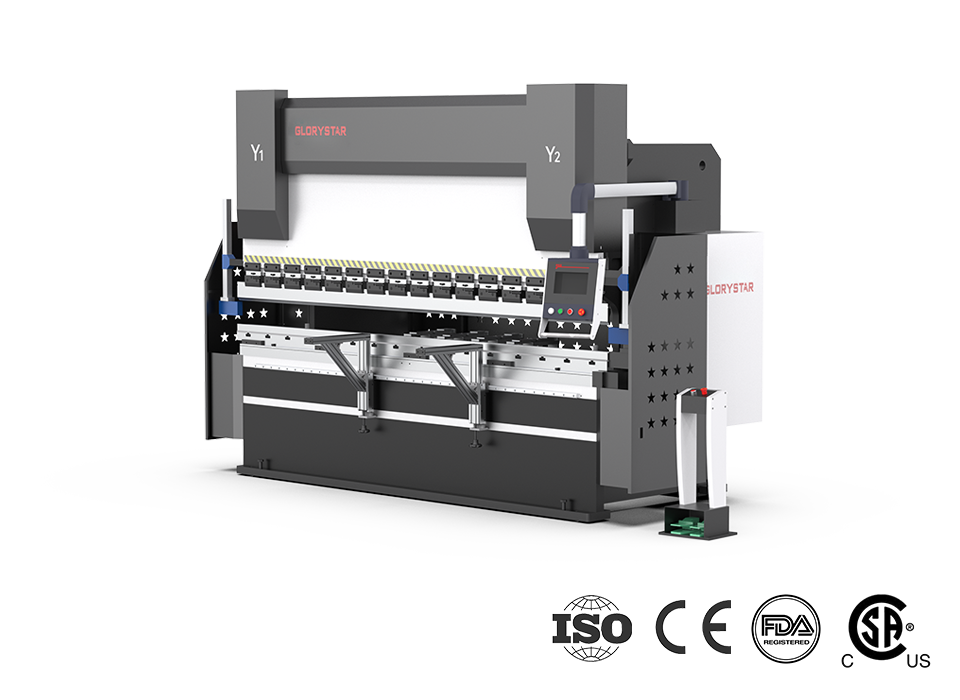

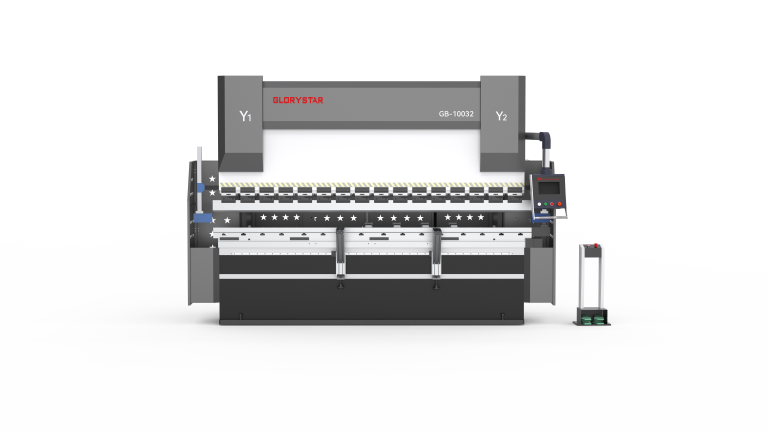

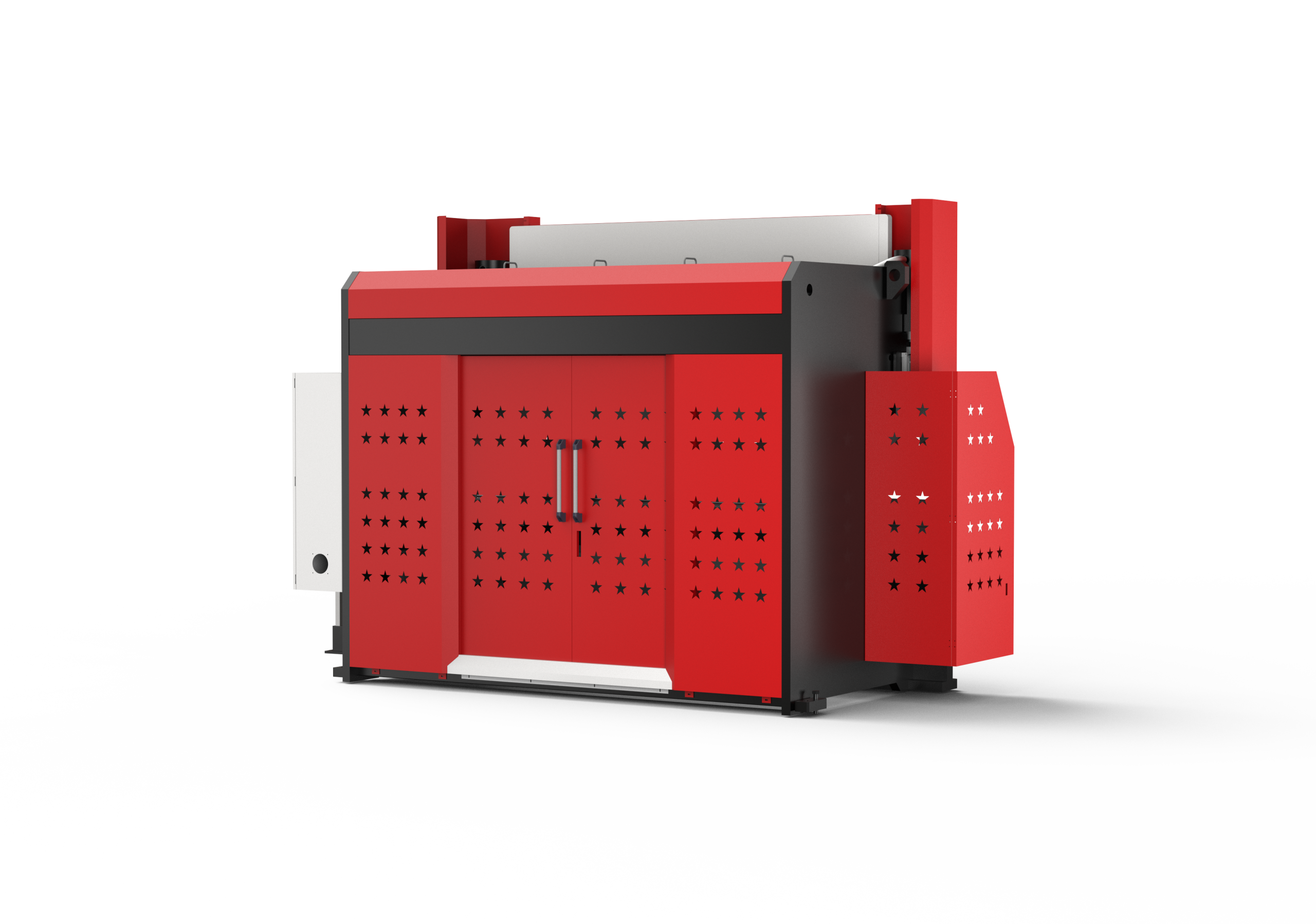

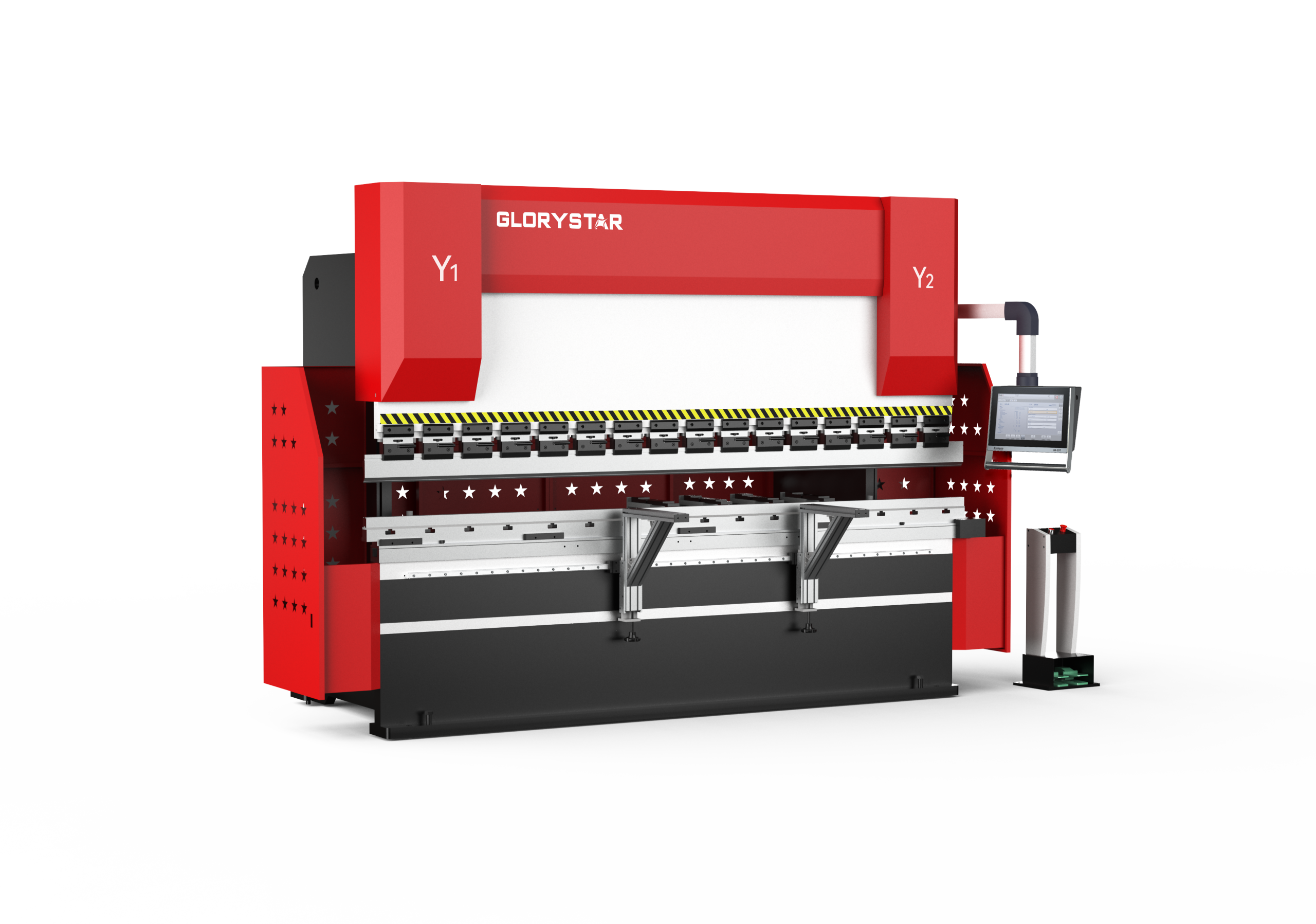

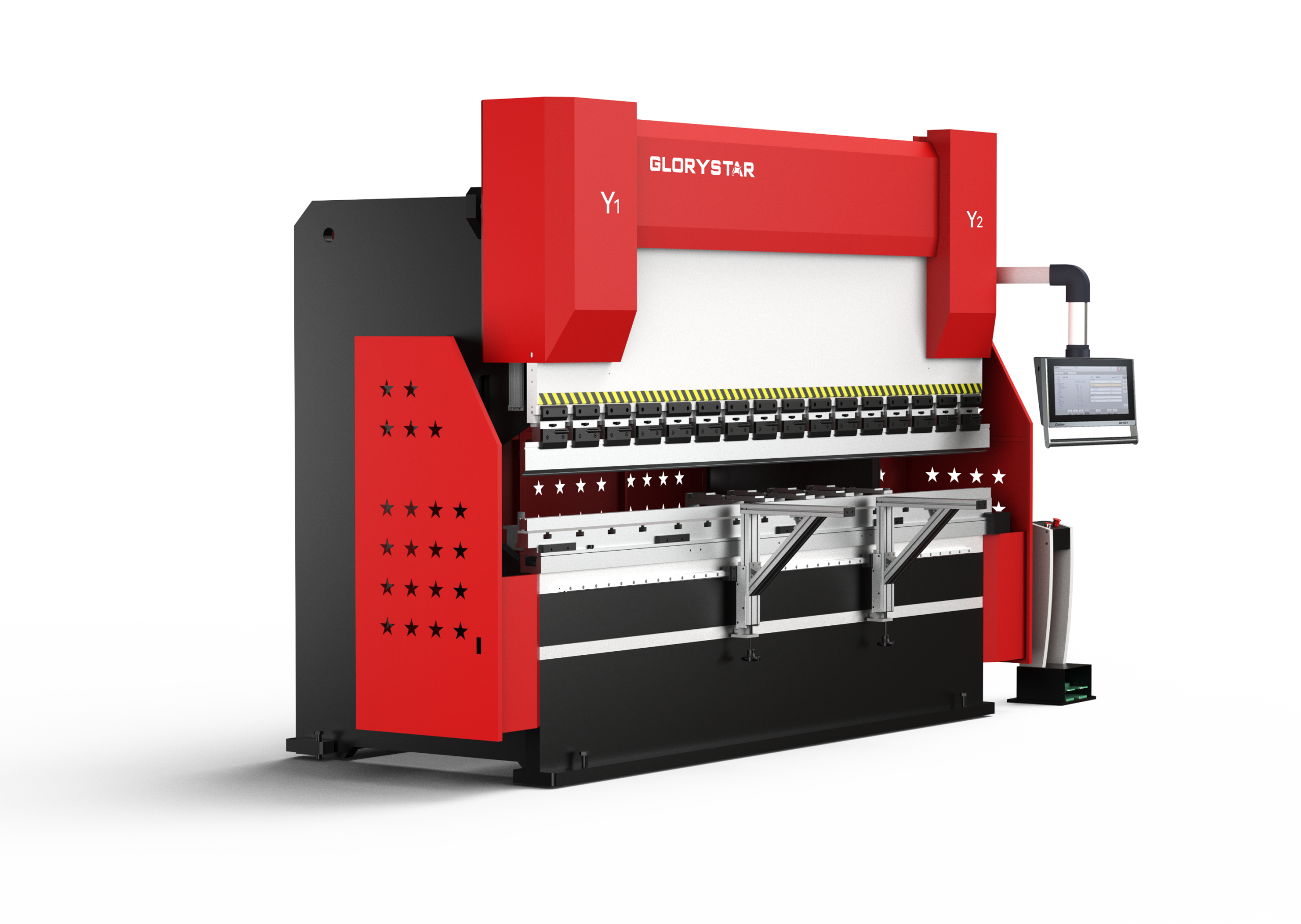

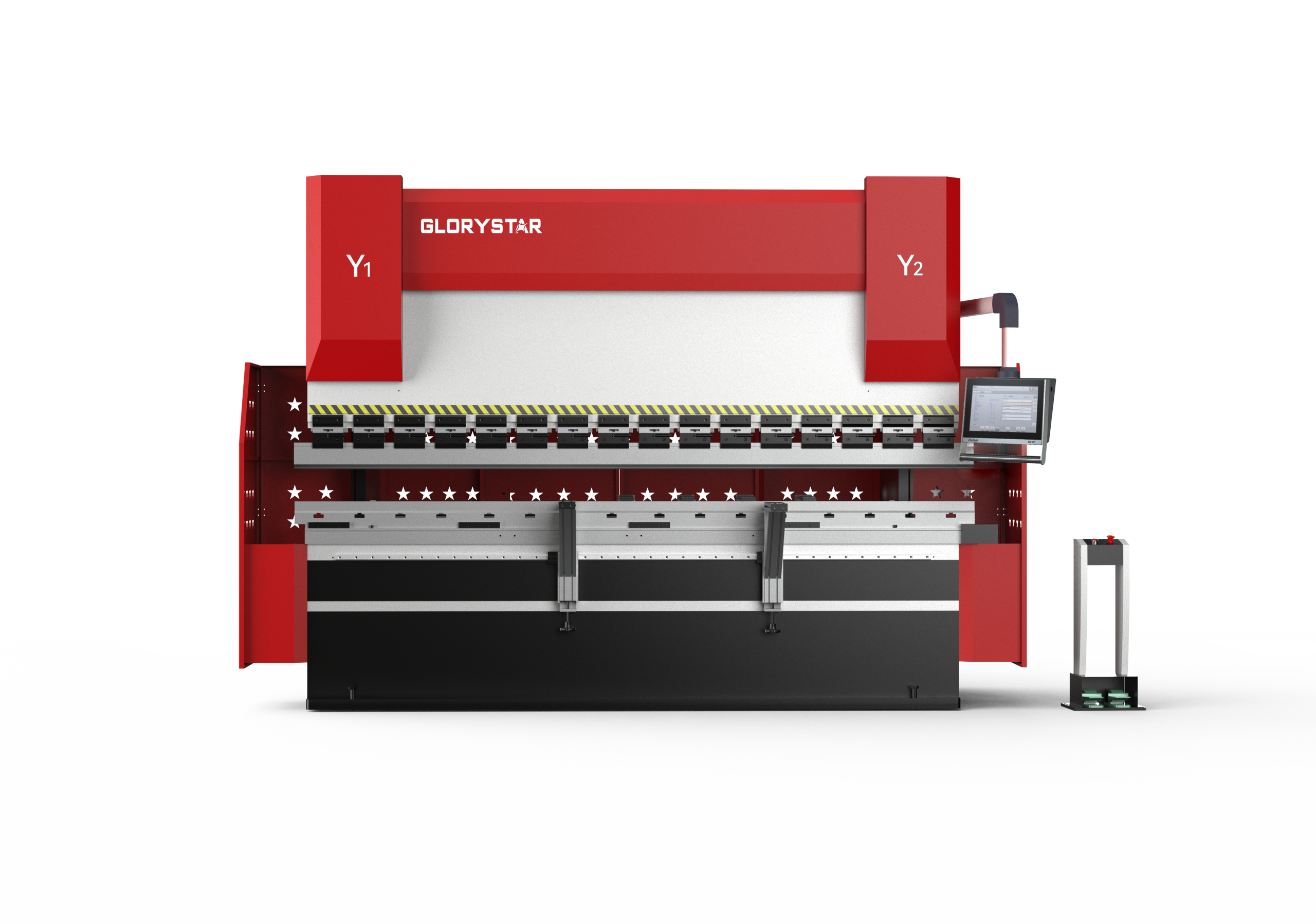

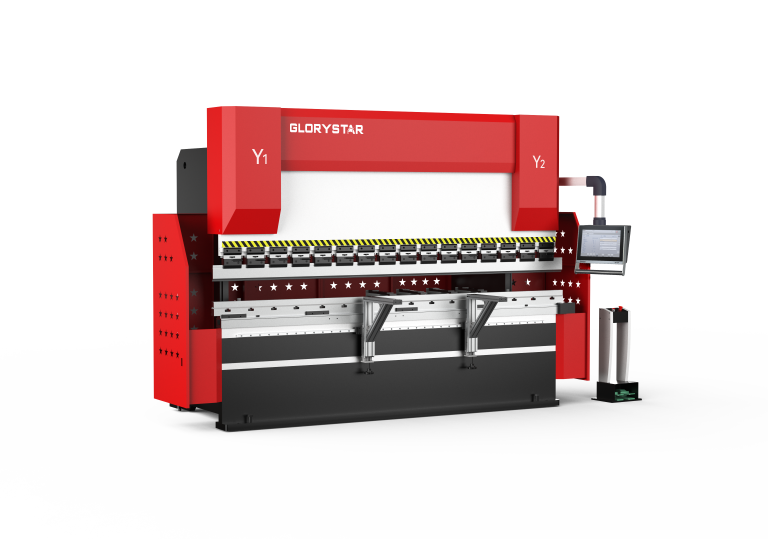

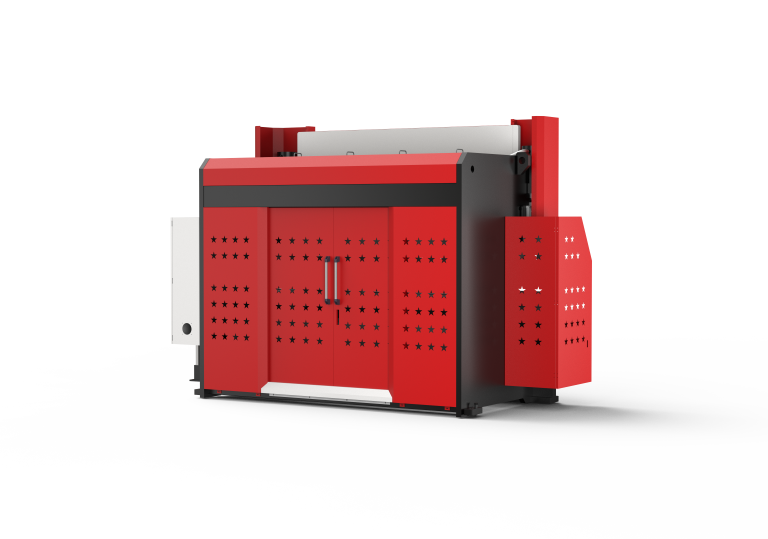

CNC Hydraulic Press Brake | GB-SERIES

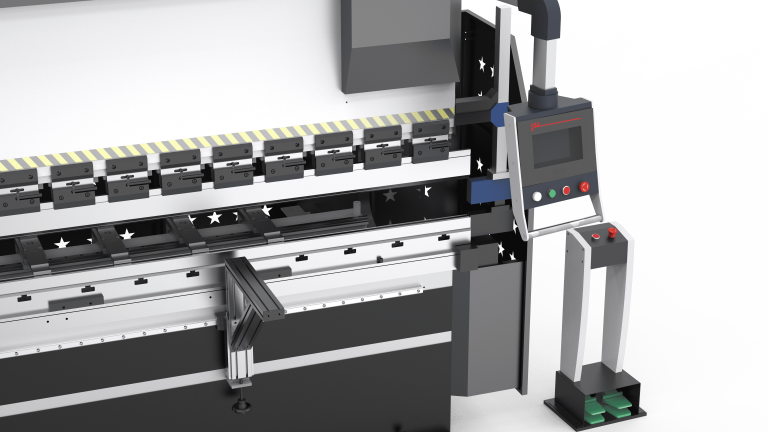

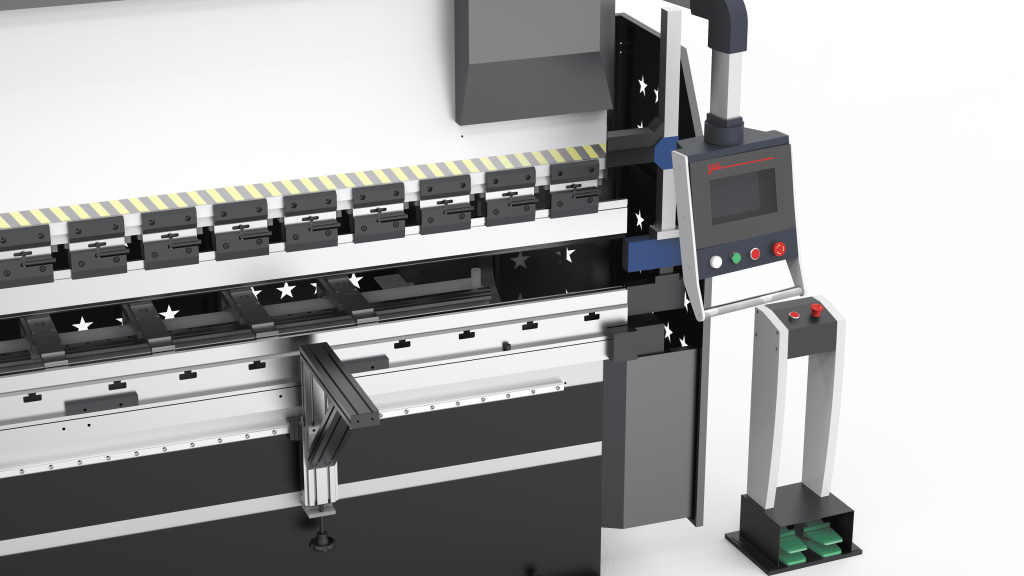

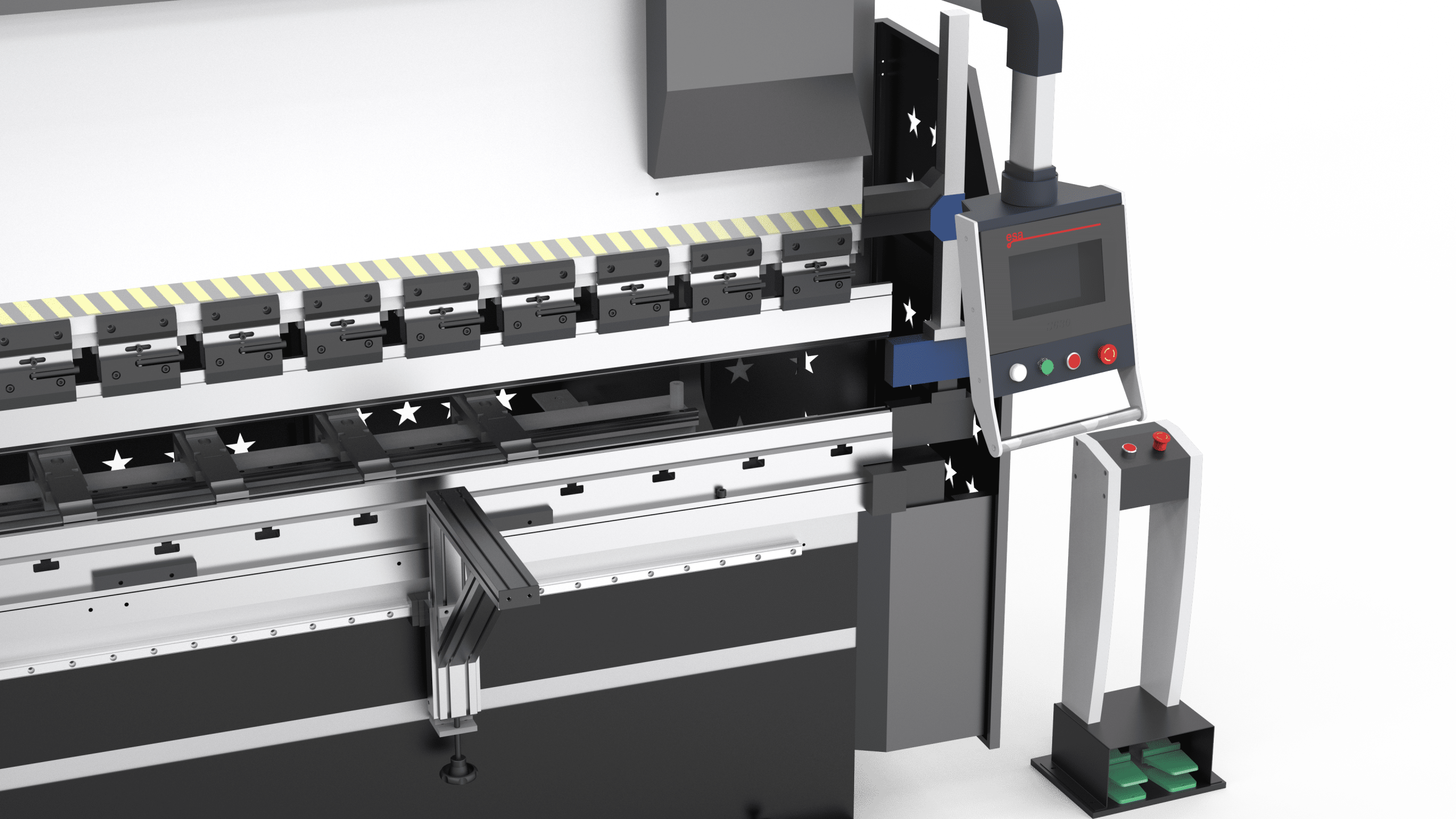

  • Equipped with advanced CNC and hydraulic control systems for high-precision, high-efficiency bending.
  • Supports automatic programming, pressure calculation, and deflection compensation for various shapes and sizes.
  • Built with high-quality core components, offering reliable performance and a wide selection of tooling.

Get Price
">Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Precision Press brake with Power and Performance

The GB Series 1000KN–4000KN CNC press brakes are high-precision, high-efficiency Press brake with advanced design and superior performance. They feature top-tier CNC systems, hydraulic components, precision ball screws, and linear guides for reliable operation.

Auto Programming & Press brake for Complex Tasks

Equipped with a full range of standard dies, dedicated bending functions, and automatic programming software, the GB Series supports automatic pressure calculation, deflection compensation, and processing of complex shapes and special materials with ease.

Why Choose GLORYSTAR?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Specifications

  • Technical Parameter I
  • Technical Parameter II
  • Application

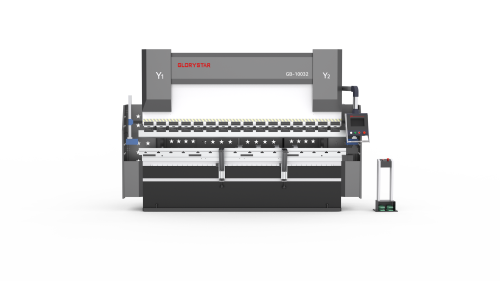

Model GB-8025 GB-10032 GB-16032 GB-16041 GB-20032 GB-20041
Nominal Force (kN) 800 1000 1600 1600 2000 2000
Working Table Length (mm) 2500 / 8.2ft 3200 / 10.5ft 3200 / 10.5ft 4100 / 13.5ft 3200 / 10.5ft 4100 / 13.5ft
Distance Between Columns (mm) 1900 / 6.2ft 2700 / 8.9ft 2700 / 8.9ft 3600 / 11.8ft 2700 / 8.9ft 3600 / 11.8ft
Max Open Height (mm) 445 / 1.5ft 460 / 1.5ft 460 / 1.5ft 460 / 1.5ft 500 / 1.6ft 500 / 1.6ft
Ram Stroke (mm) 200 / 0.7ft 200 / 0.7ft 200 / 0.7ft 200 / 0.7ft 240 / 0.8ft 240 / 0.8ft
Throat Depth (mm) 400 / 1.3ft 400 / 1.3ft 400 / 1.3ft 400 / 1.3ft 400 / 1.3ft 400 / 1.3ft
Ram Speed
(mm/s) 		Approach Speed 180 / 0.6ft 180 / 0.6ft 160 / 0.5ft 160 / 0.5ft 120 / 0.4ft 120 / 0.4ft
Bending Speed 12 / 0.5in 10 / 0.4in 9 / 0.4in 9 / 0.4in 8 / 0.3in 8 / 0.3in
Return Speed 160 / 0.5ft 150 / 0.5ft 130 / 0.4ft 130 / 0.4ft 100 / 0.3ft 100 / 0.3ft
Main Motor (kW) 7.5 7.5 11 11 15 15
Weight (kg) 5500 / 18301lbs 8300 / 18301lbs 10000 / 22046lbs 11500 / 25353lbs 12000 / 26455lbs 13500 / 29762lbs
Overall Dimensions (mm) 2720*1990*2490
8.9*6.5*8.2ft 		3400*1990*2580
11.1*6.5*8.5ft 		3400*2035*2700
11.1*6.7*8.9ft 		4300*2035*2700
14.1*6.7*8.9ft 		3400*2165*2810
11.1*7.1*9.2ft 		4300*2165*2810
14.1*7.1*9.2ft
Model GB-25032 GB-25041 GB-32041 GB-40041 GB-40061
Nominal Force (kN) 2500 2500 3200 4000 4000
Working Table Length (mm) 3200 / 10.5ft 4100 / 13.5ft 4100 / 13.5ft 4100 / 13.5ft 6100 / 20ft
Distance Between Columns (mm) 2700 / 8.9ft 3600 / 11.8ft 3600 / 11.8ft 3300 / 10.8ft 5000 / 16.4ft
Max Open Height (mm) 500 / 1.6ft 500 / 1.6ft 530 / 1.7ft 530 / 1.7ft 530 / 1.7ft
Ram Stroke (mm) 240 / 0.8ft 240 / 0.8ft 240 / 0.8ft 240 / 0.8ft 240 / 0.8ft
Throat Depth (mm) 400 / 1.3ft 400 / 1.3ft 420 / 1.4ft 430 / 1.4ft 430 / 1.4ft
Ram Speed
(mm/s) 		Approach Speed 110 / 0.4ft 110 / 0.4ft 100 / 0.3ft 80 / 0.2ft 80 / 0.2ft
Bending Speed 8 / 0.3in 8 / 0.3in 8 / 0.3in 8 / 0.3in 8 / 0.3in
Return Speed 90 / 0.3ft 90 / 0.3ft 80 / 0.2ft 70 / 0.2ft 70 / 0.2ft
Main Motor (kW) 15 15 22 30 30
Weight (kg) 13000 / 28660lbs 14500 / 31967lbs 18000 / 39683lbs 23000 / 50706lbs 32000 / 70548lbs
Overall Dimensions (mm) 3400*2175*2865
11.1*7.1*9.4ft 		4300*2175*2865
14.1*7.1*9.4ft 		4300*2320*3250
14.1*7.6*10.7ft 		4300*2335*3420
14.1*7.7*11.2ft 		6300*2485*3620
20.7*8.1*11.9ft

Material Applications:

Carbon Steel, Stainless Steel, Aluminum, Galvanized Steel, Copper, Brass, and other bendable sheet metals.

Industry Applications:

Sheet Metal Fabrication, Electrical Cabinets & Enclosures, Elevator Panels, Kitchen Equipment, Steel Furniture, Automotive Parts, HVAC, Construction, Shipbuilding, Machinery Manufacturing, and more. For customized bending solutions based on specific applications, please contact us.

Model GB-8025 GB-10032 GB-16032 GB-16041 GB-20032 GB-20041
Nominal Force (kN) 800 1000 1600 1600 2000 2000
Working Table Length (mm) 2500 / 8.2ft 3200 / 10.5ft 3200 / 10.5ft 4100 / 13.5ft 3200 / 10.5ft 4100 / 13.5ft
Distance Between Columns (mm) 1900 / 6.2ft 2700 / 8.9ft 2700 / 8.9ft 3600 / 11.8ft 2700 / 8.9ft 3600 / 11.8ft
Max Open Height (mm) 445 / 1.5ft 460 / 1.5ft 460 / 1.5ft 460 / 1.5ft 500 / 1.6ft 500 / 1.6ft
Ram Stroke (mm) 200 / 0.7ft 200 / 0.7ft 200 / 0.7ft 200 / 0.7ft 240 / 0.8ft 240 / 0.8ft
Throat Depth (mm) 400 / 1.3ft 400 / 1.3ft 400 / 1.3ft 400 / 1.3ft 400 / 1.3ft 400 / 1.3ft
Ram Speed (mm/s) Approach Speed 180 / 0.6ft 180 / 0.6ft 160 / 0.5ft 160 / 0.5ft 120 / 0.4ft 120 / 0.4ft
Bending Speed 12 / 0.5in 10 / 0.4in 9 / 0.4in 9 / 0.4in 8 / 0.3in 8 / 0.3in
Return Speed 160 / 0.5ft 150 / 0.5ft 130 / 0.4ft 130 / 0.4ft 100 / 0.3ft 100 / 0.3ft
Main Motor (kW) 7.5 7.5 11 11 15 15
Weight (kg) 5500 / 18301lbs 8300 / 18301lbs 10000 / 22046lbs 11500 / 25353lbs 12000 / 26455lbs 13500 / 29762lbs
Overall Dimensions (mm) 2720*1990*2490
(8.9*6.5*8.2ft)		 3400*1990*2580
(11.1*6.5*8.5ft)		 3400*2035*2700
(11.1*6.7*8.9ft)		 4300*2035*2700
(14.1*6.7*8.9ft)		 3400*2165*2810
(11.1*7.1*9.2ft)		 4300*2165*2810
(14.1*7.1*9.2ft)
Model GB-25032 GB-25041 GB-32041 GB-40041 GB-40061
Nominal Force (kN) 2500 2500 3200 4000 4000
Working Table Length (mm) 3200 / 10.5ft 4100 / 13.5ft 4100 / 13.5ft 4100 / 13.5ft 6100 / 20ft
Distance Between Columns (mm) 2700 / 8.9ft 3600 / 11.8ft 3600 / 11.8ft 3300 / 10.8ft 5000 / 16.4ft
Max Open Height (mm) 500 / 1.6ft 500 / 1.6ft 530 / 1.7ft 530 / 1.7ft 530 / 1.7ft
Ram Stroke (mm) 240 / 0.8ft 240 / 0.8ft 240 / 0.8ft 240 / 0.8ft 240 / 0.8ft
Throat Depth (mm) 400 / 1.3ft 400 / 1.3ft 420 / 1.4ft 430 / 1.4ft 430 / 1.4ft
Ram Speed (mm/s) Approach Speed 110 / 0.4ft 110 / 0.4ft 100 / 0.3ft 80 / 0.2ft 80 / 0.2ft
Bending Speed 8 / 0.3in 8 / 0.3in 8 / 0.3in 8 / 0.3in 8 / 0.3in
Return Speed 90 / 0.3ft 90 / 0.3ft 80 / 0.2ft 70 / 0.2ft 70 / 0.2ft
Main Motor (kW) 15 15 22 30 30
Weight (kg) 13000 / 28660lbs 14500 / 31967lbs 18000 / 39683lbs 23000 / 50706lbs 32000 / 70548lbs
Overall Dimensions (mm) 3400*2175*2865
(11.1*7.1*9.4ft)		 4300*2175*2865
(14.1*7.1*9.4ft)		 4300*2320*3250
(14.1*7.6*10.7ft)		 4300*2335*3420
(14.1*7.7*11.2ft)		 6300*2485*3620
(20.7*8.1*11.9ft)

Material Applications:

Carbon Steel, Stainless Steel, Aluminum, Galvanized Steel, Copper, Brass, and other bendable sheet metals.

Industry Applications:

Sheet Metal Fabrication, Electrical Cabinets & Enclosures, Elevator Panels, Kitchen Equipment, Steel Furniture, Automotive Parts, HVAC, Construction, Shipbuilding, Machinery Manufacturing, and more. For customized bending solutions based on your specific application, please feel free to contact us.
