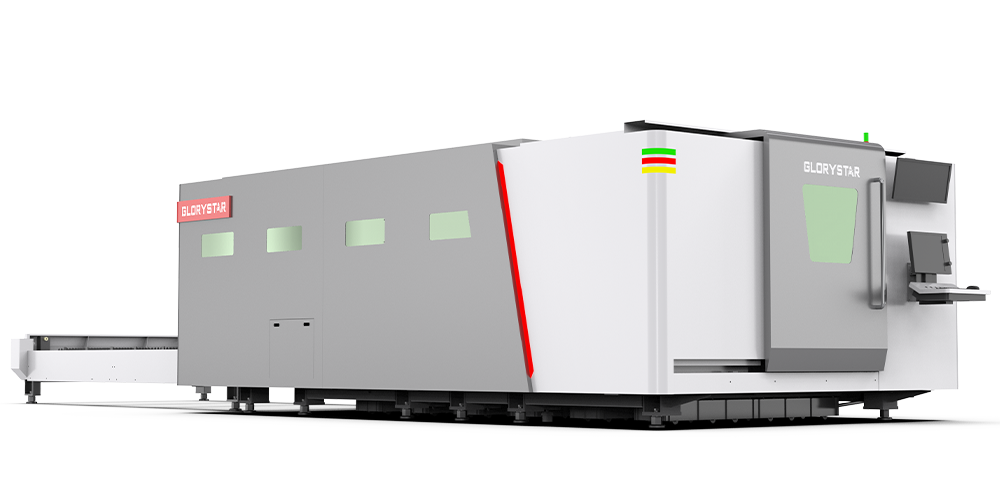

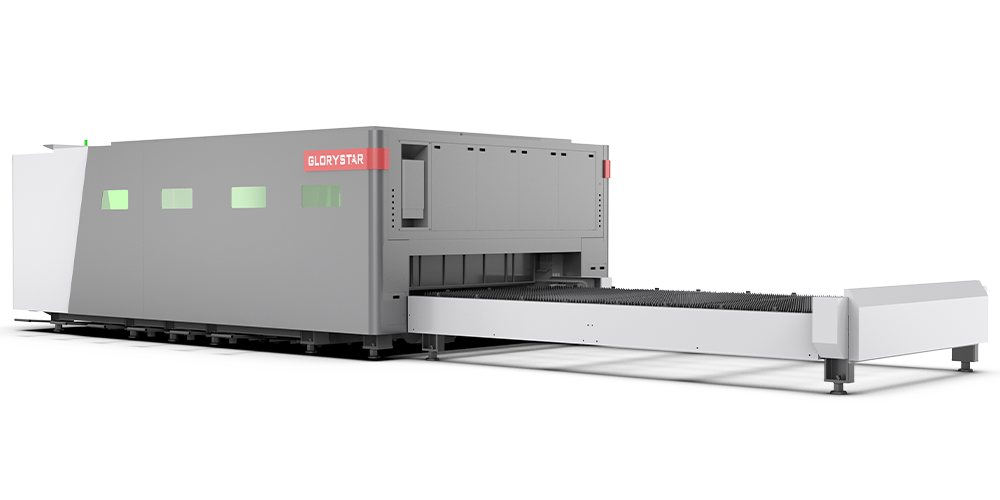

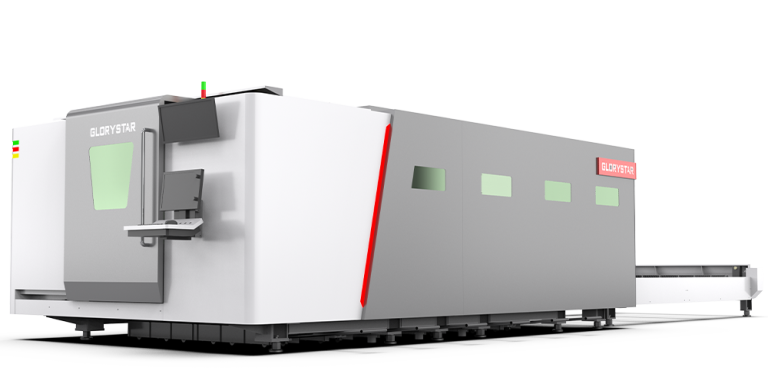

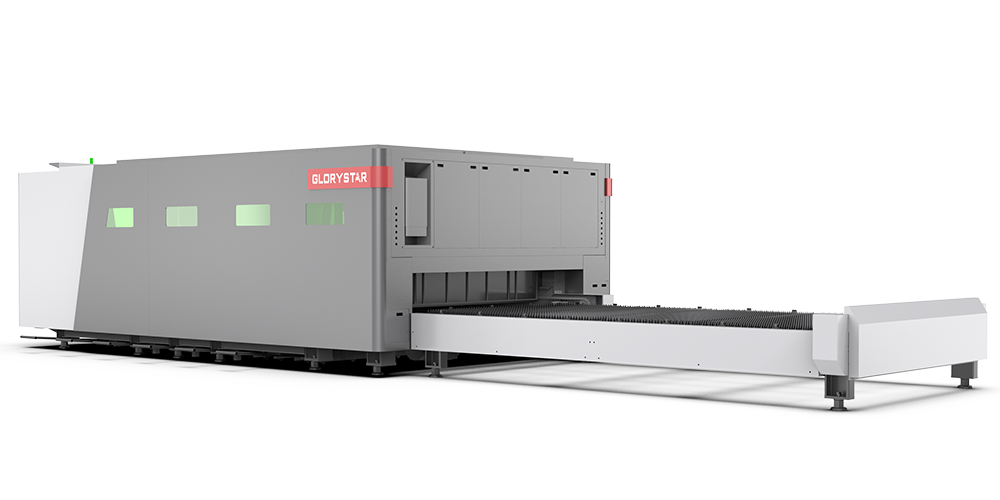

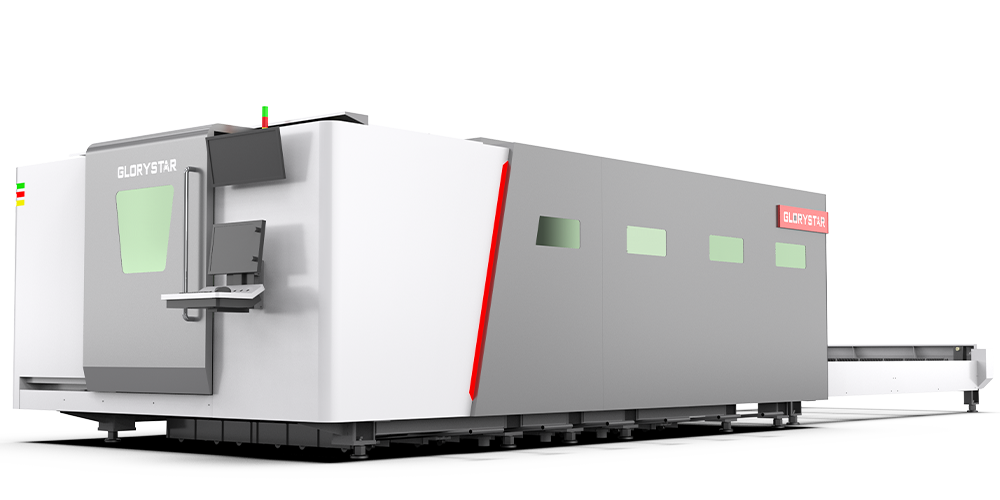

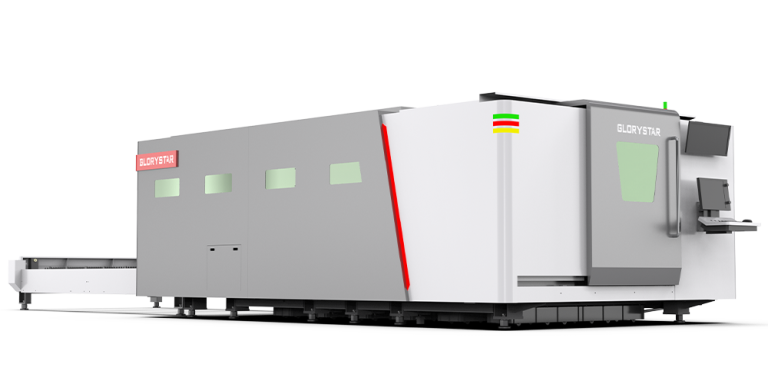

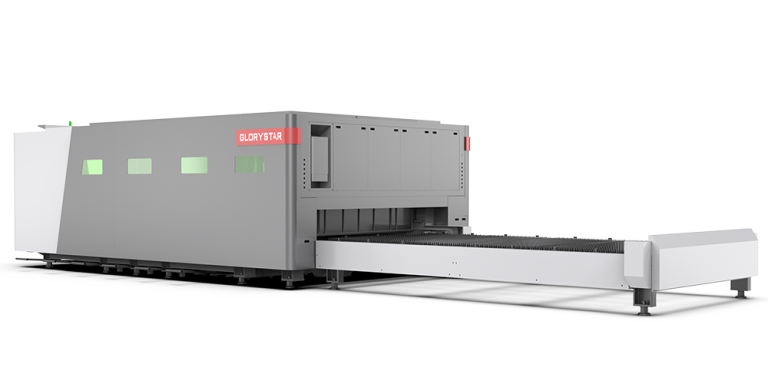

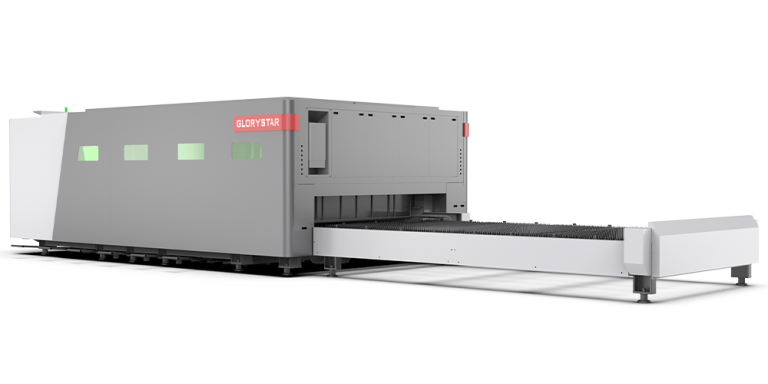

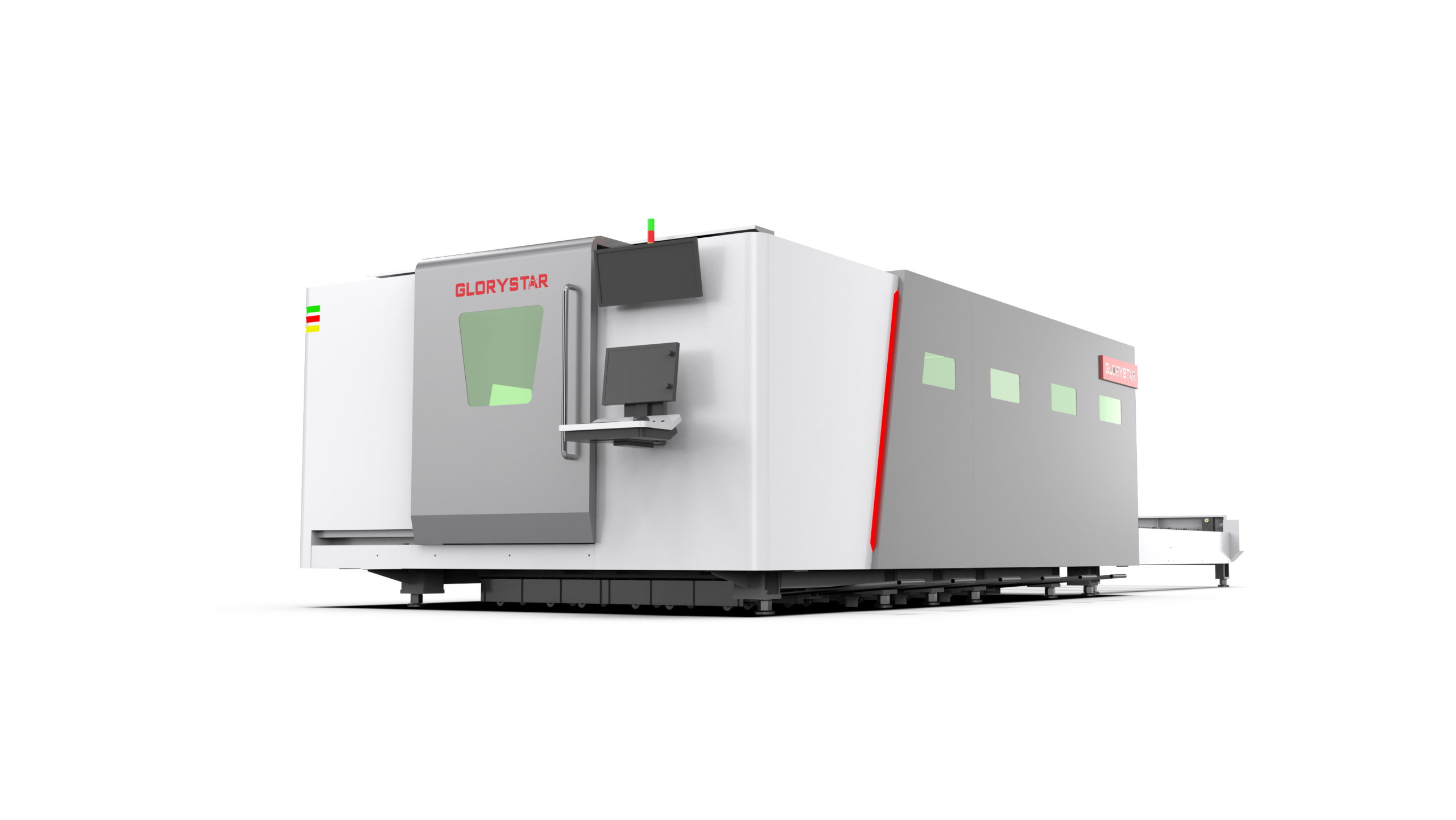

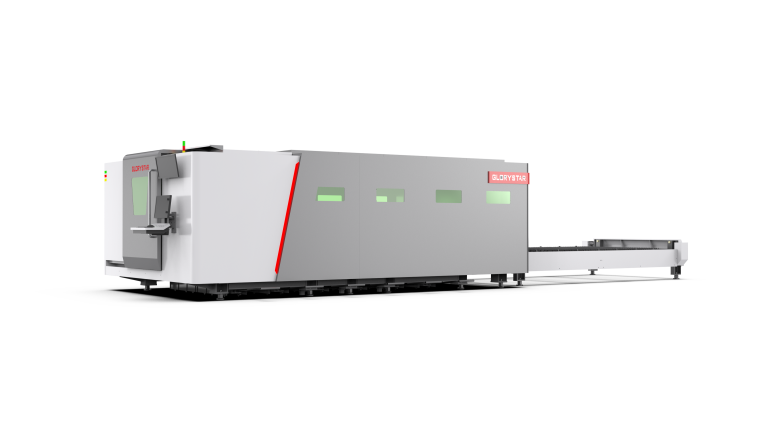

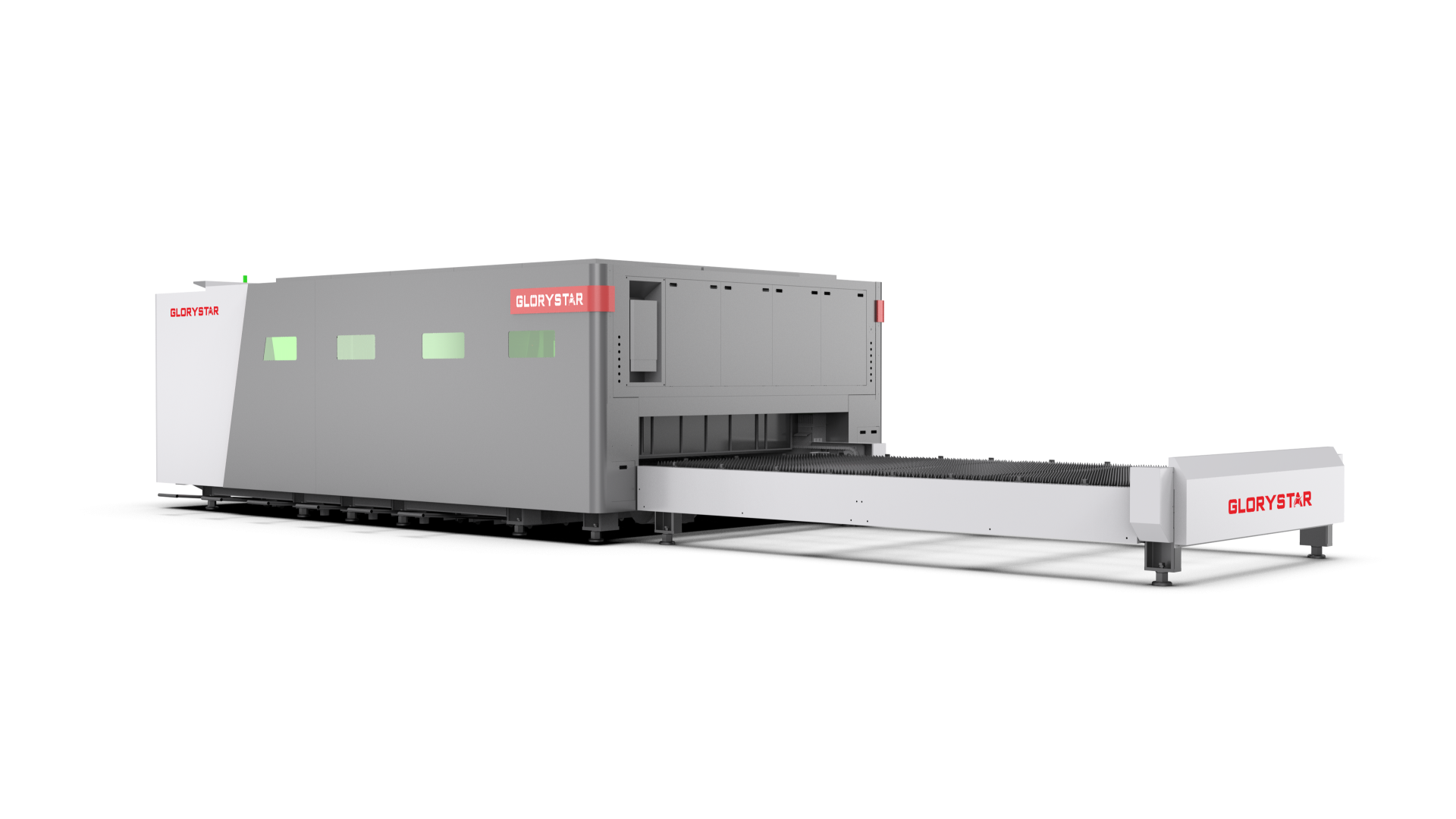

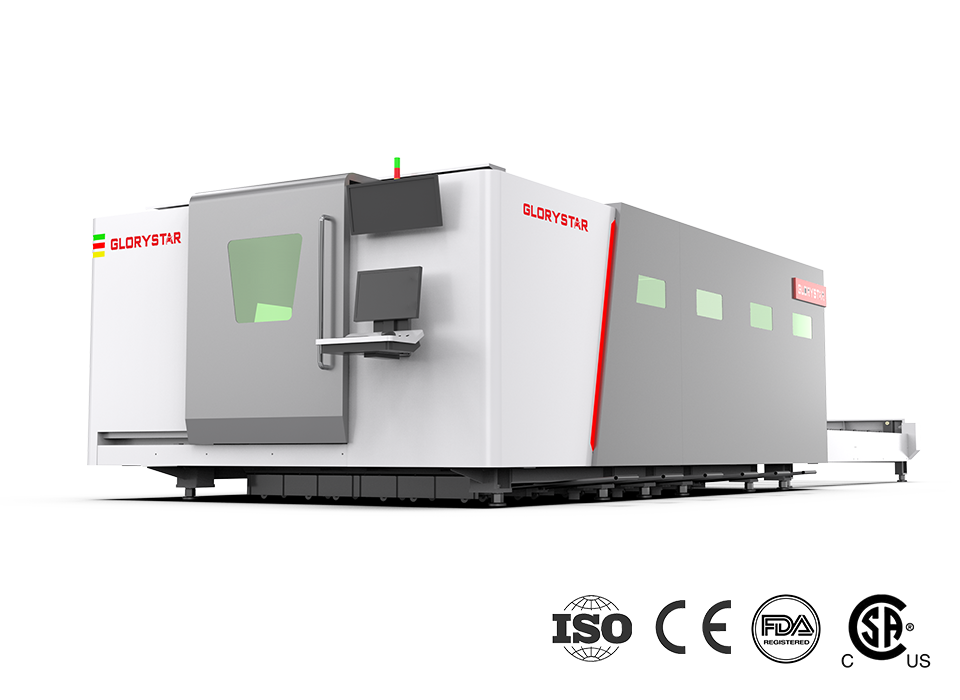

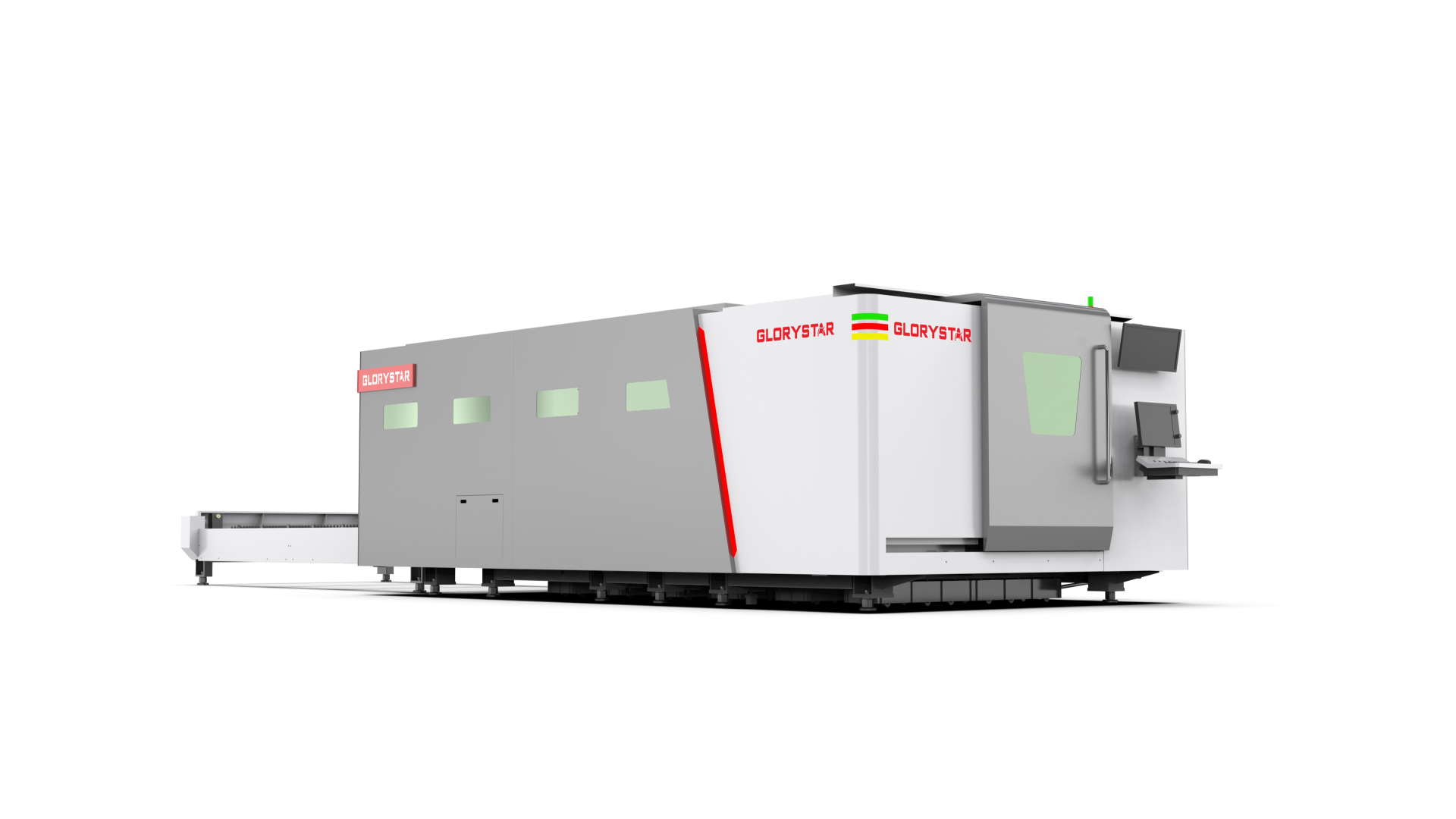

Ultra-High Power Fiber Laser Metal Sheet Cutting Machine | GS-6025CE PRO


【High payload】【Deformation-resistant】

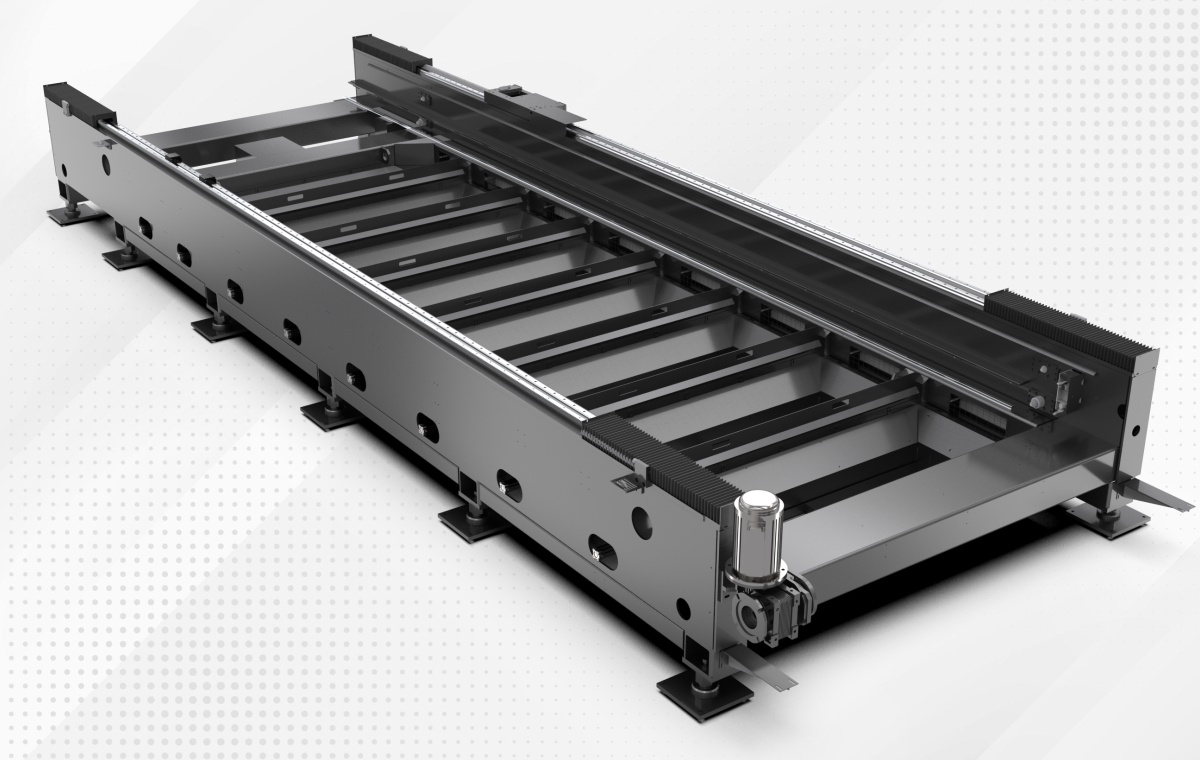

  • High-rigidity machine bed with exceptional resistance to bending, vibration, torsion, and deformation for long-term stability.

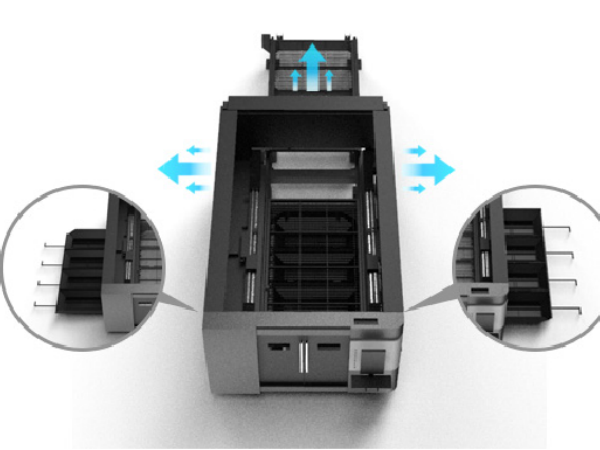

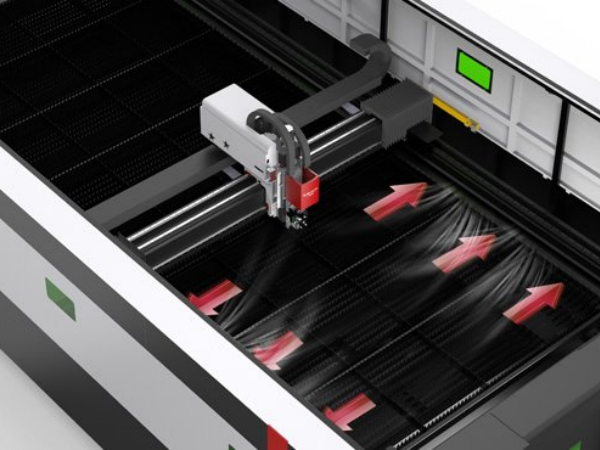

  • Industry-leading fume extraction system delivers high efficiency and environmental protection.

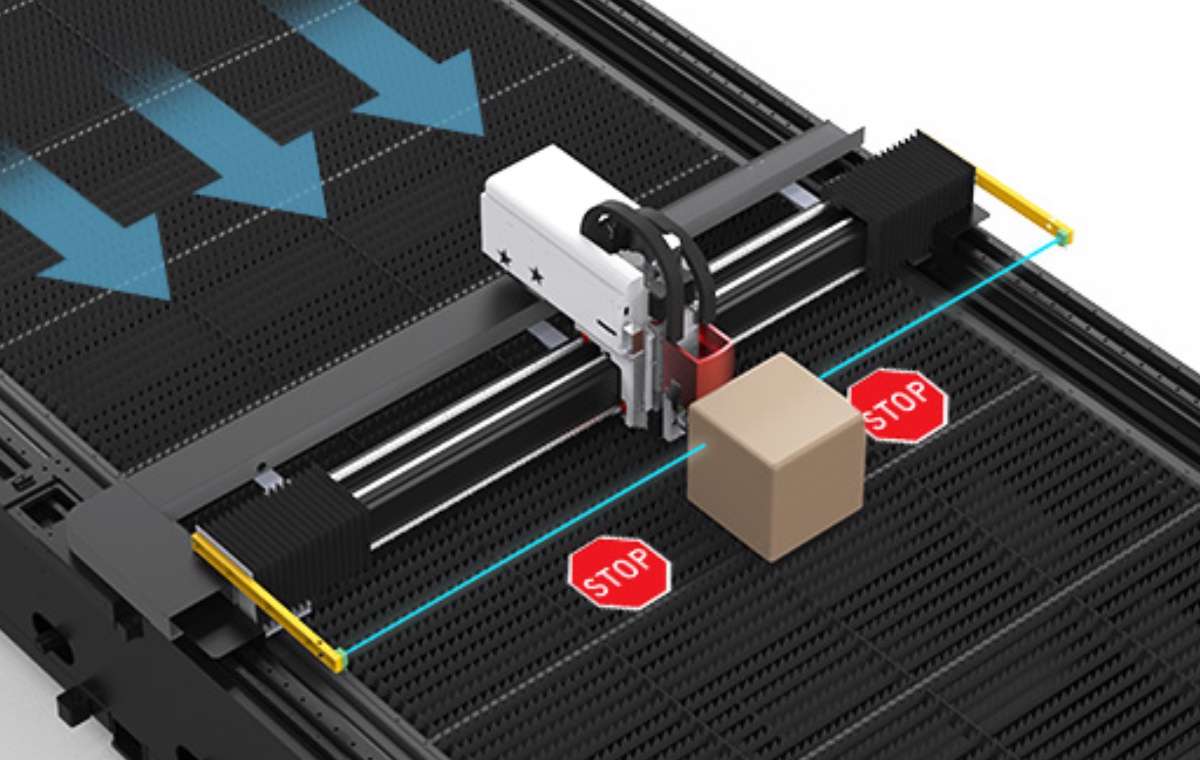

  • Smart collision detection system ensures safe and reliable operation
Get Price
Watch Video
  • Superior Product

    1Year Warranty

  • Unmatched Bed

    Lifetime Warranty

  • Technical Support

    Free Technical Consult for Life

Overview

Premium & Versatile

The all-new GS-CE Pro Series fiber laser cutting machine, developed by Glorystar Laser , is a fast and flexible standard model designed to meet the demands of high-end laser cutting applications, capable of handling any cutting task.

Precision Cutting for All Thicknesses

The GS-CE Pro Series offers multiple table sizes (3015, 4020, 6015, 6020, 6025, 8025, 12025) to suit various processing needs. Its flexibility and cost-efficiency ensure optimal results for all sheet thicknesses. With a premium fiber laser, it boosts productivity for both thin and thick materials, while high-end configurations ensure reliability and performance.

Why Choose Our High Power Laser Cutter?

  • 339 Quality Inspection Standards
    • 144+ Material Inspection Standards
    • 70+ Assembly Process Inspection Standards
    • 125+ Whole-Machine Precision Inspection Standards
    • Upholding Every Line of Defense for High-Quality Delivery
  • Thoughtful Service
    • Online 24/7 after-sales technical support
    • On-site support within 24 hours​
    • Dedicated service channel with a one-on-one service team​
    • Attentive product manager providing remote installation guidance​
    • Professional technical training
  • Mid-to-High-End Laser Application Solutions
    • Comprehensive solutions for cutting, welding, and bending sheet metal, tubes, and complex-shaped materials.
    • Specialized in mid-to-high-end laser applications with advanced automation integration.
    • Trusted by over 100,000 premium clients worldwide.
    • Empowering modern manufacturing with efficiency, precision, and innovation.
  • Industry Expertise
    • Over 20 years of deep experience in the laser intelligent equipment industry.
    • A team of over 200 expert consultants with strong technical capabilities.
    • More than 400 independent intellectual property rights, showcasing strong innovation.
    • Complete quality traceability system with multiple international certifications.

Specifications

  • Technical Parameter
  • Instruction
  • Application
GS-3015CE Pro GS-4020CE Pro GS-6020CE Pro GS-6025CE Pro GS-8025CE Pro GS-12025CE
Max. material width (mm) 3000×1500 10×5ft 4000×2000 13×7ft 6000×2000 20×5ft 6000×2500 20×8ft 8000×2500 26×8ft 12000×2500 40×8ft
X axis travel (mm) 1530 / 5.1ft 2030 / 6.7ft 2030 / 6.7ft 2530 / 8.3ft 2530 / 8.3ft 2530 / 8.3ft
Y axis travel (mm) 3020 / 99ft 4020 / 13 2ft 6020 / 198ft 6020 / 198ft 8020 / 26 3ft 12020 / 395ft
Z axis travel (mm) 290-450 / 11.5-17.8in 290-450 / 11.5-17.8in 290-450 / 11.5-17.8in 290-450 / 11.5-17.8in 290-450 / 11.5-17.8in 290-450 / 11.5-17.8in
X/Y positioning accuracy ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in ≤0.03mm/m / 0.00118in/39.4in
X/Y repeat positioning accuracy ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in ≤±0.02mm / 0.00079in
Max. synthetic positioning speed 190m/min / 624.5ft/min 190m/min / 624.5ft/min 190m/min / 624.5ft/min 190m/min / 624.5ft/min 190m/min / 624.5ft/min 190m/min / 624.5ft/min
Max. acceleration 4.0G 3.5G 3.5G 3G 2.8G 2.8G
Slit width 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in 0.1mm-0.5mm / 0.0039in-0.0197in
Incision roughness Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in
Max. cutting thickness range Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table Refer to the following process parameter table
Min. setting unit 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in 0.001mm / 0.00003937in
Floor area of machine tool (mm) 9240×4000 30.3×13.2ft 12200×4500 40.1×14.8ft 16560×4500 54.4×14.8ft 16560×5000 54.4×16.4ft 20850×5000 68.4×16.4ft 29150×5000 95.7×16.4ft
Host volume (mm) 9140×3030×2640
30×10×8 7ft		 11200×3620×2200
36 8×11 9×7 3ft		 15560×3620×2200
51 1×11 9×7 3ft		 15560×4120×2600
51 1×13 5×8 6ft		 19850×4120×2600
65 2×13 6×8 6ft		 28150×4200×2600
92 4×13 8×8 6ft
CNC system FSCUT FSCUT FSCUT FSCUT FSCUT FSCUT
Monitor 27" LCD 27" LCD 27" LCD 27" LCD 27" LCD 27" LCD
Transfer method Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive Rack and pinion dual drive
Max. load-bearing capacity of worktable (tons) 4.3 / 9481lbs 6.2 / 13669bs 9.3 / 20403lbs 14.2 / 31306lbs 18.9 / 41668lbs 28.3 / 62391lbs
Total installed power consumption 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA 12000W 100KVA
Total installed power consumption 20000W 150KVA 20000W 150KVA 20000W 150KVA 20000W 150KVA 20000W 150KVA 20000W 150KVA
Total installed power consumption 30000W 200KVA 30000W 200KVA 30000W 200KVA 30000W 200KVA 30000W 200KVA 30000W 200KVA
Total installed power consumption 40000W 300KVA 40000W 300KVA 40000W 300KVA 40000W 300KVA 40000W 300KVA 40000W 300KVA
Power requirements AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE AC380V , 50Hz ; 3P+N+PE
Total power protection level IP54 IP54 IP54 IP54 IP54 IP54

Instruction:

The products provided by the company are optimized and upgraded according to the research and development process.
This technical description is suitable for most models. The products purchased by customers may difer from the specified configuration.
This manual does not confirm the contract delivey of machiney and equipment.

Material Applications:

Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.

Industry Applications:

Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.

Cutting Samples

FAQs

  • All FAQs
  • General
  • Technology
  • Sales
What technical support do you offer?

We back every Glorystar Laser system with end‑to‑end support: pre‑sales application consulting and sample cutting, turnkey on‑site installation and operator training, 24/7 remote diagnostics, rapid-response field service from certified engineers, a global spare‑parts network, lifetime software updates, and optional process optimization and automation upgrades—everything you need to keep your laser running at peak productivity.

How is the machine installed?

Our certified engineers handle positioning, leveling, utility hookup (power, gas, cooling), full system wiring, laser alignment, accuracy calibration, and trial cutting. A signed acceptance report closes the job.

How much does a fiber laser cutting machine for sale?

Pricing for metal laser cutters is driven by three factors: model, laser wattage, and configuration. Thicker materials require higher power, which in turn raises the investment. Let us know the material and thickness you plan to process, and our engineers will recommend the optimal laser solution for your needs.
