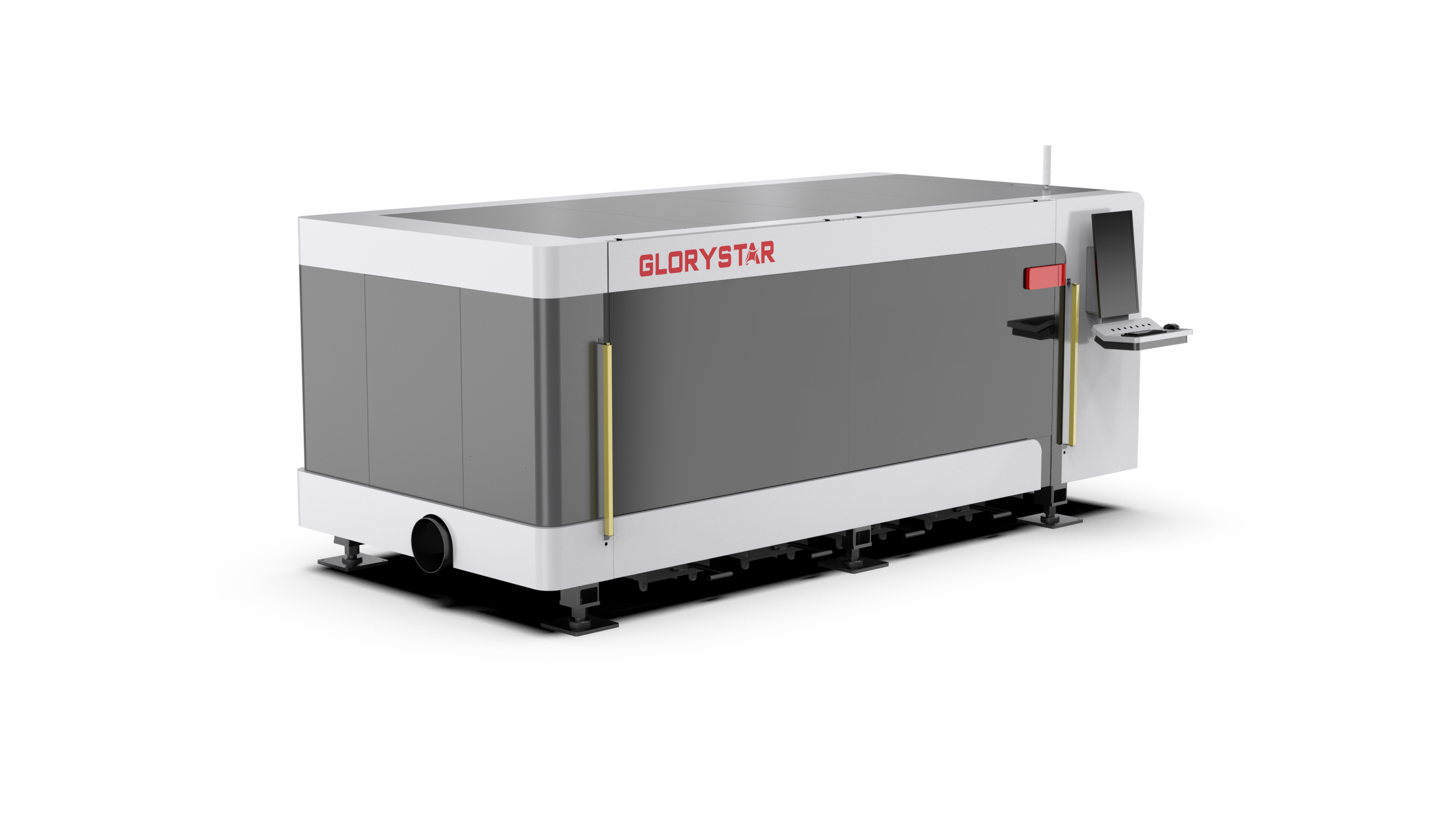

| GS-1510C | GS-3015C | GS-4020C | |
|---|---|---|---|
| Max. material width (mm) | 1500×1000 5×3.3ft | 3000×1500 10×5ft | 4000×2000 13.2×6.6ft |
| X axis travel (mm) | 1020 / 3.4ft | 3020 / 10ft | 4020 / 13.2ft |
| Y axis travel (mm) | 1520 / 5ft | 1520 / 5ft | 2000 / 6.6ft |
| Z axis travel (mm) | 95 / 3.8in | 95 / 3.8in | 95 / 3.8in |
| X/Y positioning accuracy | ≤0.03mm/m / 0.00118in/39.4in | ≤0.03mm/m / 0.00118in/39.4in | ≤0.03mm/m / 0.00118in/39.4in |
| X/Y repeat positioning accuracy | ≤±0.02mm / 0.00079in | ≤±0.02mm / 0.00079in | ≤±0.02mm / 0.00079in |
| Max. synthetic positioning speed | 140m/min / 460ft/min | 140m/min / 460ft/min | 140m/min / 460ft/min |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Slit width | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in | 0.1mm-0.5mm / 0.0039in-0.0197in |
| Notch roughness | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in | Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in |
| Max. cutting thickness range | Rack and pinion dual drive | Rack and pinion dual drive | Rack and pinion dual drive |
| Min. setting unit | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in | 0.001mm / 0.00003937in |
| Floor area of machine tool (mm) | 4000×3000 13×10ft | 6000×2500 19.7×8.2ft | 8000×3850 26.3×12.7ft |
| Host volume (mm) | 3130×2750×2300 10.3×9×7.6ft | 5100×2400×2300 16.8×7.9×7.6ft | 6200×3760×2300 20.4×12.4×7.6ft |
| CNC system | FSCUT（optinal Glorystar system） | FSCUT（optinal Glorystar system） | FSCUT（optinal Glorystar system） |
| Monitor | 27" LCD | 27" LCD | 27" LCD |
| Max. bearing capacity of workbench (tons) | 0.75 / 1654lbs | 1 / 2205lbs | 1.8 / 3969lbs |
| Total installed power consumption | 1500W 19.5KVA | 1500W 19.5KVA | 1500W 19.5KVA |
| Total installed power consumption | 3000W 27KVA | 3000W 27KVA | 3000W 27KVA |
| Total installed power consumption | 6000W 42KVA | 6000W 42KVA | 6000W 42KVA |
| Total installed power consumption | 20000W 150KVA | 20000W 150KVA | 20000W 150KVA |
| Power requirements | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE | AC380V , 50Hz ; 3P+N+PE |
| Total power protection level | IP54 | IP54 | IP54 |
Instruction:
The products provided by the company are optimized and upgraded according to the research and development process.
This technical description is suitable for most models. The products purchased by customers may difer from the specified configuration.
This manual does not confirm the contract delivey of machiney and equipment.
Material Applications:
Stainless Steel, Mild Steel, Carbon Steel, Aluminum, Copper, Brass, Bronze, Alloy Steel, Galvanized Steel, Titanium, Nickel Alloys, and more.
Industry Applications:
Manufacturing &Heavy Industry, Shipbuilding, Steel Structure Construction, Bridge Manufacturing,Aerospace, Military& Defense, New energy and Battery Manufacturing, Automotive, Medical Devices,Energy& Power Generation, Electronics, Oil & Gas, Machinery Manufacturing,HVAC (Heating, Ventilation, and Air Conditioning), Railways, and more. The materials and industries abovementioned can benefit from our machine. For cutting solution on specific applications, welcome to contact Us.
